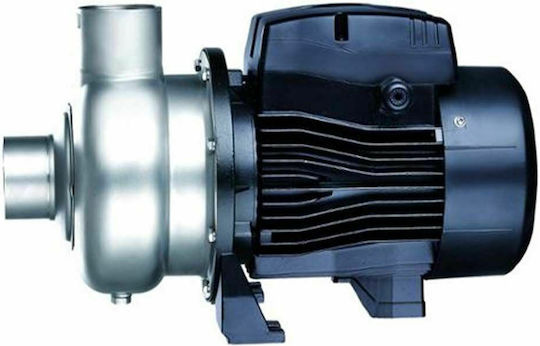

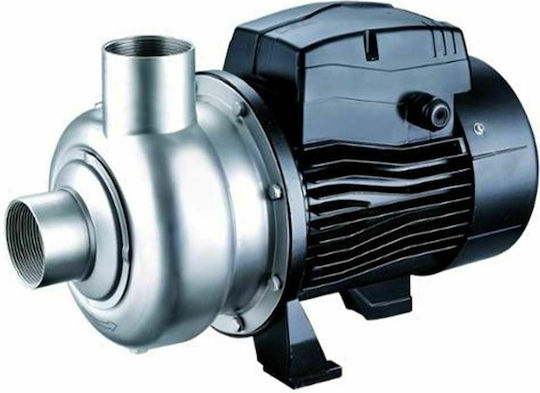

Leo Group ABK120 Electric Surface Water Pump Centrifugal 1.2hp Three-Phase
Surface Water Pumps

Leo Group ABK120 Electric Surface Water Pump Centrifugal 1.2hp Three-Phase Code: 01C55

The Leo Group ABK120 surface centrifugal pump has a stainless steel body and a VORTEX-type impeller. It operates on a 380 V three-phase power supply, while the flow rate and head vary depending on the...

The Leo Group ABK120 surface centrifugal pump has a stainless steel body and a VORTEX-type impeller. It operates on a 380 V three-phase power supply, while the flow rate and head vary depending on the operating point.

  • Type: Centrifugal
  • Body material: Stainless steel
  • Impeller type: VORTEX
  • Impeller material: Stainless steel
  • Horsepower: 1.2 hp
  • Power supply:...
See full description See full description

Top specs

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Centrifugal

    Pumps with impellers that enhance water flow.
  • Voltage Three-Phase

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
237 50 €
Delivery by Mon, 09 Nov
59,00 €   shipping cost
Sent from Greece
From Trusttools
Greece
See Water Pumps on the page of Trusttools

Learn more about invoicing
Review the product
Product report

Description

Description

The Leo Group ABK120 surface centrifugal pump has a stainless steel body and a VORTEX-type impeller. It operates on a 380 V three-phase power supply, while the flow rate and head vary depending on the operating point.

  • Type: Centrifugal
  • Body material: Stainless steel
  • Impeller type: VORTEX
  • Impeller material: Stainless steel
  • Horsepower: 1.2 hp
  • Power supply: Electric
  • Voltage: Three-phase, 380 V
  • Installation: Horizontal
  • Water flow rate and head: 6 m³/hour at 11 m, 12 m³/hour at 10 m, 18 m³/hour at 9 m
  • Ports: 1½’’ x 1¼’’

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
01C55

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
1.2 hp
Manometric Head
11 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Leo Group ABK120 surface centrifugal pump has a stainless steel body and a VORTEX-type impeller. It operates on a 380 V three-phase power supply, while the flow rate and head vary depending on the operating point.

  • Type: Centrifugal
  • Body material: Stainless steel
  • Impeller type: VORTEX
  • Impeller material: Stainless steel
  • Horsepower: 1.2 hp
  • Power supply: Electric
  • Voltage: Three-phase, 380 V
  • Installation: Horizontal
  • Water flow rate and head: 6 m³/hour at 11 m, 12 m³/hour at 10 m, 18 m³/hour at 9 m
  • Ports: 1½’’ x 1¼’’
