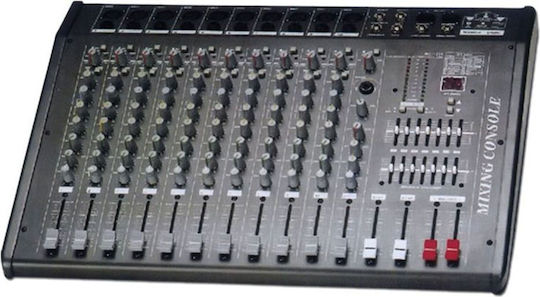

The Astone Mic-Line PS MX-1000 powered analog mixer features 10 XLR inputs and MIC and LINE inputs. It includes high, mid and low frequency controls, as well as two 7-band graphic equalizers. The built-in 16-bit digital echo has an adjustable delay of 24.6 to 393.2 ms.
The main outputs support balanced and unbalanced connections at +4 dB. The mixer has a metal chassis, a 20 dB attenuator, and controls with rotary knobs and sliders, making it suitable for live sound and small PA setups.
- Type: Analog
- Powered: Yes
- Channels: 10
- XLR inputs: 10
- Inputs: MIC and LINE
- Frequency controls: High, mid and low
- Graphic equalizers: 2 x 7-band
- Effects: 16-bit digital echo with a 24.6–393.2 ms delay
- Main outputs: Balanced and unbalanced, +4 dB level
- Attenuator: 20 dB
- THD: < 0.1% at 20–20,000 Hz
- Dimensions: 650 x 495 x 180 mm
Dimensions
- Type
- Console
- Type
- Analog
- Active
- Yes
- Channels
- 10
- Phantom Power
- No
- Effects
- No
- Length
- 650 mm
- Height
- 180 mm
- Length
- 495 mm
Connectivity
- USB (for PC)
- No
- XLR Inputs
- 10
- Bluetooth
- No
- Headphones
- No
- Ethernet
- No
- RCA
- No
