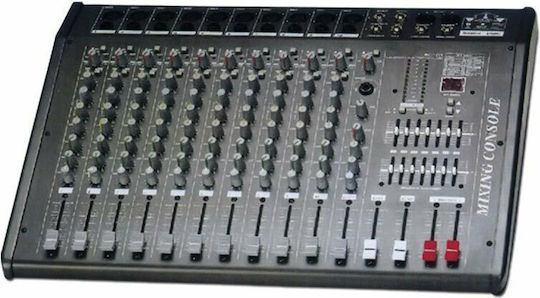

The Astone MX-1400-P is a powered analog mixer with 14 Mic/Line channels, featuring 14 XLR microphone inputs and corresponding line channels. Its built-in amplifier delivers 2 x 200 W at 8 Ω or 2 x 350 W at 4 Ω.

It provides 48 V Phantom Power for condenser microphones. Features include dual 7-band graphic equalizers and a 16-bit digital echo effect with an adjustable delay of 24.6–393.2 ms. The Master outputs include a balanced output with a +4 dB level and an impedance of approximately 600 Ω, and an unbalanced output with an impedance of approximately 75 Ω. The headphone output supports a 100 Ω impedance and delivers 3 mW at 32 Ω.

• Type: Analog
• Powered: Yes
• Channels: 14
• XLR inputs: 14
• Phantom Power: 48 V
• Equalizers: Dual 7-band graphic
• Effects: 16-bit digital echo
• Effect delay: 24.6–393.2 ms
• Amplifier output: 2 x 200 W at 8 Ω, 2 x 350 W at 4 Ω
• Master outputs: Balanced and unbalanced
• Balanced Master output impedance: Approximately 600 Ω
• Balanced Master output level: +4 dB
• Unbalanced Master output impedance: Approximately 75 Ω
• Headphone output: Supports a 100 Ω impedance
• Headphone output power: 3 mW at 32 Ω
• Harmonic distortion: <0.1% at 20–20,000 Hz
• Signal-to-noise ratio/attenuation characteristic: 20 dB
