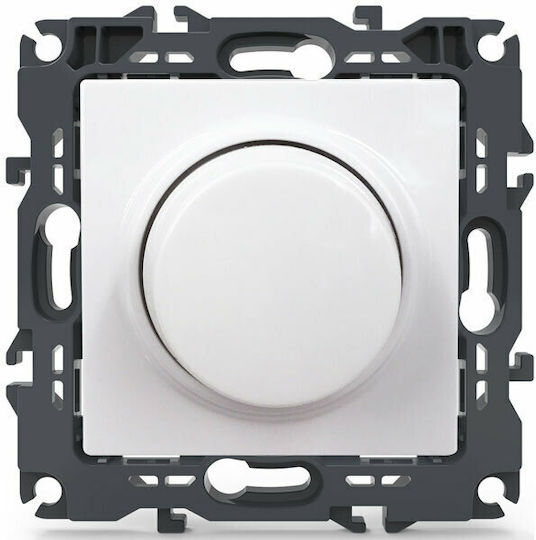

Aca Prime Recessed Classic Rotary Dimmer Switch without Frame 800W in White Color Code: 1000115401

The Aca Prime flush-mounted dimmer switch adjusts brightness using a rotary control and TRIAC technology. It has two outputs and supports controlling the same lighting circuit from two locations, as...

The Aca Prime flush-mounted dimmer switch adjusts brightness using a rotary control and TRIAC technology. It has two outputs and supports controlling the same lighting circuit from two locations, as well as capacitive loads (RC) and compatible dimmable LED lights. The maximum load is 800 VA at 250 V AC.

  • Installation: Flush-mounted
  • Type: Front plate
  • ...
See full description See full description

Top specs

See all
12 30 €
Delivery by Thu, 19 Nov
14,00 €   shipping cost
Sent from Greece
From Anastasiadi 4.9 (8)
Greece
20 pieces
See Sockets & Switches on the page of Anastasiadi

Learn more about invoicing

Description & Specifications

The Aca Prime flush-mounted dimmer switch adjusts brightness using a rotary control and TRIAC technology. It has two outputs and supports controlling the same lighting circuit from two locations, as well as capacitive loads (RC) and compatible dimmable LED lights. The maximum load is 800 VA at 250 V AC.

  • Installation: Flush-mounted
  • Type: Front plate
  • Operation: Rotary
  • Dimmer technology: Electronic TRIAC
  • Maximum load: 800 VA
  • Operating voltage: 250 V AC
  • Outputs: 2
  • Number of contacts: 1P
  • Load type: Capacitive (RC)
  • Compatibility: Dimmable LED lights (5–200 VA, up to 10 lamps) and capacitive loads (RC)
  • Control locations: 2
  • Material: Plastic and metal
  • Protection rating: IP20
  • Colour: White

Manufacturer

Product Number
1000115401

Dimensions

Placement
Recessed
Compatibility
Classic
Type
Front
Mode
Rotary
Power
800 W
Colour
White
Power Supply
230V

Additional Features

Illuminated
No
Aller Retour
Yes

Professional Control

DMX512
No
DALI
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
