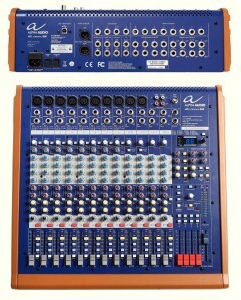

The Alpha Audio analog mixer features 16 input channels, four subgroup outputs, and a stereo main output. The eight or ten microphone inputs can be switched with four or two stereo channels, while the microphone inputs feature switchable phantom power.

Mono channels 1–8 have a built-in compressor/limiter and direct outputs for recording. The mono channels have 3-band EQ with semi-parametric mids, while the stereo channels have 4-band EQ with fixed mids. The USB Audio connection links the 2-Track input and output for stereo recording and playback of the main mix signal, while the built-in 24-bit DSP processor lets you adjust basic parameters.

• Type: Analog
• Input channels: 16
• Subgroup outputs: 4
• Main mix output: Stereo
• Microphone inputs: 8 or 10, switchable with stereo channels
• Stereo channels: 2 or 4, switchable with microphone inputs
• Phantom power: Switchable
• Noise control: Low-noise microphone preamps and impact noise attenuation
• Compressor/limiter: Built into the mono channels
• Direct outputs: On channels 1–8
• Mono channel EQ: 3-band with semi-parametric mids
• Stereo channel EQ: 4-band with fixed mids
• USB Audio connection: For stereo recording and playback of the main mix via 2-Track
• DSP processor: Built-in, 24-bit
• Submix groups: 4
• Direct outputs: 8
• Control Room output: For recording
• Headphone outputs: 2
• Auxiliary sends: 4, 2 of which are post-fader
• Channel send switching: 2, pre- or post-fader
• Audio monitoring: Comprehensive monitoring matrix for recording
• Use: Home recording and live performances
