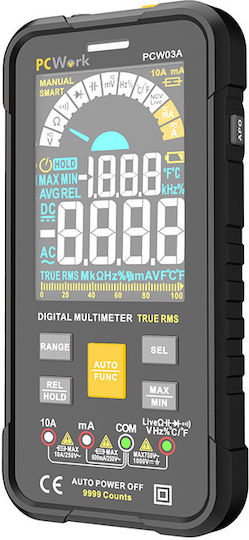

Digital multimeter with 9999 measurements, large easy-to-read screen, and 5 function keys.

The digital multimeter PCW03A is the top model as it offers all the functions a professional could ask for. Due to its innovative and compact design, it resembles a modern smartphone. It features 9999 measurements and automatic range (Auto Range).
It measures voltages and currents (AC and DC), resistances, diodes, as well as the batteries in your devices with high accuracy. With a smart range selection function, it protects the user by ensuring the correct measurement range is selected.
It also features a large color HD screen with backlight for clear display of each measurement's results. It comes with a sturdy casing with a rubber protective cover to prevent damage. Finally, it has work lighting and non-contact voltage detection function, high-quality test leads, K-type temperature probes, and a carrying case.

Specifications:

• Compact design
• Ideal for professional use
• Safety level: CAT III 1000V, CAT IV 600V
• NCV (Non-Contact Voltage) and diode testing
• Continuity Test
• Live line measurement
• Ability to measure AC/DC voltage, current, resistance, capacitance, frequency, duty cycle, and temperature
• Large color HD screen with backlight
• Innovative design with 5-key function: like a smartphone
• Data hold with Max/Min function
• Double insulation ceramic fuses
• Smart measurement function: the device automatically recognizes the intended measurement (continuity, voltage, resistance)
• Features LED work lighting
• Illuminated LED input sockets, indicating the correct input sockets for measurement
• 9999 measurements
• True RMS
• Auto Range
• Auto power-off function

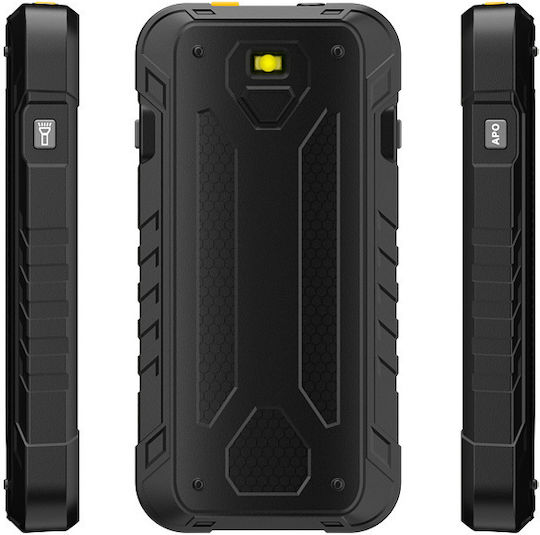

• Removable rubber protective casing

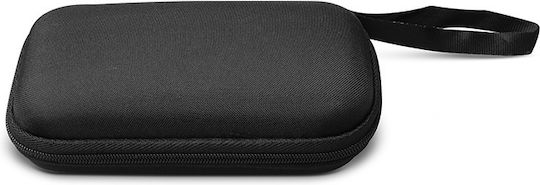

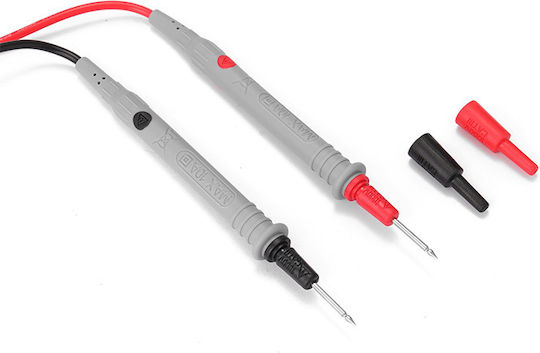

• Package includes batteries, high-quality test leads, K-type temperature probes, and carrying case

Technical characteristics:

• DC Voltage: 99.99mV/999.9mV/9.99V/99.99V/999.9V ± (0.5%+3)
• AC Voltage: 99.99mV/999.9mV/9.99V/99.99V/999.9V ± (0.8%+3)
• DC Current: 99.99uA/999.9uA/99.9mA/999.9mA ± (0.8%+3), 9.99A ± (1.2%+3)
• AC Current: 99.99uA/999.9uA/99.9mA/999.9mA ± (1.0%+3), 9.99A ± (1.5%+3)
• Resistance: 99.99Ω/999.9Ω/9.999kΩ/99.9kΩ/999.9kΩ ± (0.8%+3), 9.999MΩ/99.99MΩ ± (1.2%+3)
• Capacitance Measurement: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ± (4.0 %+3), 9.999mF/ 99.99mF ± (5.0%+5)
• Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.99MHz ± (1.0%+3)
• Duty Cycle: 0.1% ~ 99.9% ± (1.0%+2)
• Temperature: -40°C ~ 1000°C ± (1.0%+3)
• Power Supply: 3x 1.5V AAA batteries
• Dimensions: 165 x 85 x 25 mm
• Weight: 255g
• Certification: CE / EN61010-1,-2-030,-2-033 / EN61326-1,-2-2, EN61000- 3-2,-3-3 / REACH (EC) No. 1907/2006 / ROHS: 2011/65/EU and amendment 2015/863/EU
