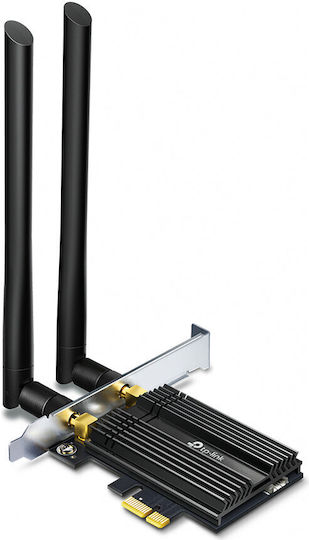

The TP-LINK Archer TX50E v2 network card connects via PCI-e and supports Wi‑Fi 6, with a combined data rate of up to 3000 Mbps. It uses an Intel Wi‑Fi 6 chipset and operates on the 2.4 GHz and 5 GHz bands, at speeds of 574 Mbps and 2402 Mbps, respectively. It supports Bluetooth 5.0 and WPA3, and is also compatible with the 802.11ac/a/b/g/n standards.
The two external, detachable antennas have a gain of 5 dBi. The card features a dedicated heatsink and gold-plated components. Bluetooth 5.0 offers connections up to twice as fast and a range up to four times greater compared with version 4.2. Transmission latency is reduced by up to 75%.
- Connection type: Wireless
- Interface: PCI-e
- Card type: PCI
- Wi‑Fi generation: Wi‑Fi 6
- Data transfer rate: Up to 3000 Mbps
- 5 GHz speed: 2402 Mbps
- 2.4 GHz speed: 574 Mbps
- Networking standards: IEEE 802.11 b/g/n, 802.11ac, 802.11ax
- Frequency bands: 2.4 GHz and 5 GHz
- Chipset: Intel Wi‑Fi 6
- Bluetooth: 5.0
- Antennas: 2 external, detachable
- Antenna gain: 5 dBi
- Security: WEP 64/128-bit encryption, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
- Operating system: Windows 10
- Package contents: 2 x 5 dBi antennas, low-profile bracket, Bluetooth header cable, quick installation guide, CD
- Dimensions: 95.2 x 120.8 x 21.5 mm
- Product Number
- Archer TX50E V2
Dimensions
- Form Factor
- PCl Card
- Network Standards
- IEEE 802.11 b/g/n, IEEE 802.11ac, IEEE 802.11ax
- Data Transfer Rate
- 3000 Mbps
- Wi-Fi Generation
- Wi‑Fi 6
Connectivity
- Connection
- Wireless
- Interface
- PCI-e
- Detachable Antenna
- Yes
