Description
Specifications
Technical specifications:

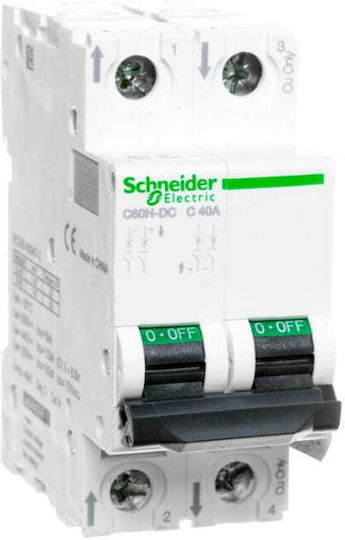

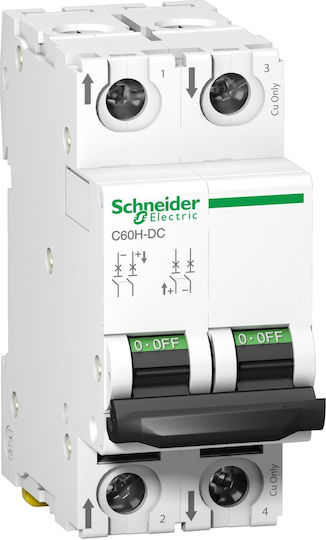

- Automatic 2P continuous current circuit breaker
- Protection against overcurrents
- Disconnection, opening and closing
- Number of protected poles: 2
- Double support (clip) for disconnecting the device from the bridging bar
- Nominal voltage: 500VDC
- Nominal impulse withstand voltage Uimp: 6kV
- Curve C: 5 to 10 In
- Frequency 50/60Hz
Nominal breaking capacity:
- 10 kA Icu at 440V DC (IEC 60947-2)
- 10 kA Icu at 440V DC (IEC 60947-2)
- 6 kA Icu at 500V DC (EN 60947-2)
- 20 kA Icu at 220V DC (GB 14048.2)
- 20 kA Icu at 220V DC (IEC 60947-2)
- 20 kA Icu at 250V DC (GB 14048.2)
Specifications
- Number of Poles
- 2
- Rated Current
- 40 A
- Operating Curve
- Curve C
Power Supply
- AC
- Yes
- DC
- Yes
