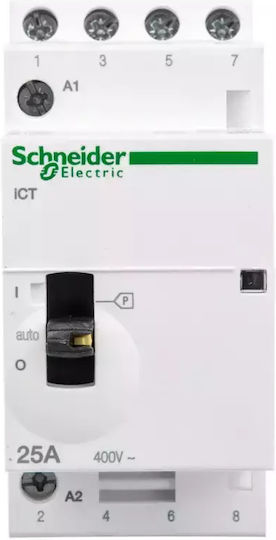

Product: modular contact iCT50r25-40-230 25A 4NO 50/60Hz 220/240 VAC (A9C21834)

• Key parameters product range: Acti 9
• Product name: Acti 9 iCT
• Type of product or component: Contacts
• Short name of the device: TPE
• Device application: Motor-heating-lighting
• Number of poles description: 4P
• Contact combination: 4 NO
• Network type: Alternating current (AC)
• Usage category: AC-1 according to EN 60947-4-1, AC-3 according to EN 60947-4-1, AC-7A according to EN 61095, AC-7B according to IEC
• Control type: Remote and manual
• Control voltage [Uc]: 220...240 V alternating current (AC) 50 Hz
• Supplementary parameters:
• Rated switching current: 25 A AC-7A, 8.5 A AC-7B
• Network frequency: 50/60 Hz
• Rated operating voltage: 400 V alternating current (AC) 50 Hz
• Maximum power: Alternating current 1.6W 400V (AC)
• Rated insulation voltage [Ui]: 500 V alternating current (AC) 50/60 Hz
• Rated impulse withstand voltage [Uimp]: 4 kV
• Control signal type: Bistable
• Switching frequency: 100 switches/day
• Local signaling: Activity indicator
• Power consumption in standby mode: VA 4.6
• Starting capability in VA: 34VA
• Assembly method: Snap-in
• Mounting base: Symmetrical DIN rail 35 mm
• Width in module units: 9 mm
• Height: 81 mm
• Width: 36 mm
• Depth: 60 mm
• Color: White
• Electrical endurance: 200000 cycles alternating current (AC) 50/60 Hz according to EN 61095, 200000 cycles alternating current (AC) 50/60 Hz according to IEC 1095
• Connections - terminals:
• Control circuit: 2 tunnel type terminals 1.5 mm² for rigid cable
• Power circuit: 1 tunnel type terminal 1...4 mm² for flexible cable
• Power circuit: 1 tunnel type terminal 1.5...6 mm² for rigid cable (wires)
• Control circuit: 1 tunnel type terminal 1.5...2.5 mm² for rigid wires
• Control circuit: 2 tunnel type terminals 1.5...2.5 mm² for flexible wires
• Torque:
• Control circuit: 0.8 N.m
• Power circuit: 0.8 N.m
• Product compliance: IACTs, IACTp, IATEt, IACTc
• Working environment: IEC 1095, EN 61095 standards
• Noise level: 30 dB
• Heat dissipation: 1.6 W at 50/60 Hz
• Level of protection: IP20
• Pollution degree: 2
• Tropicalization: 2 according to EN 60947-4-12, EN 61095, IEC 1095
• Relative humidity: 95% (55°C)
• Operating height: 2000 m
• Ambient temperature for device operation: -5...60 °C
• Ambient temperature for storage: -40...70 °C
• Sustainable development offering: Eco-friendly product Green Premium
