The Wilo Yonos Pico electronic heating and air-conditioning circulator has an integrated electronic power control system for continuously adjusting the differential pressure. The constant Δp-c and variable Δp-v differential pressure modes can be selected according to the application, such as radiators or underfloor heating. The green button makes installation and maintenance easier.

This wet-rotor circulator features an ECM motor, automatic unblocking, high starting torque and a rotor chamber venting function. The LED display shows the selected setpoint and current power consumption in W. The package includes 1 & 1/4" circulator unions.

• Type: Electronic circulator
• Applications: Heating and air conditioning

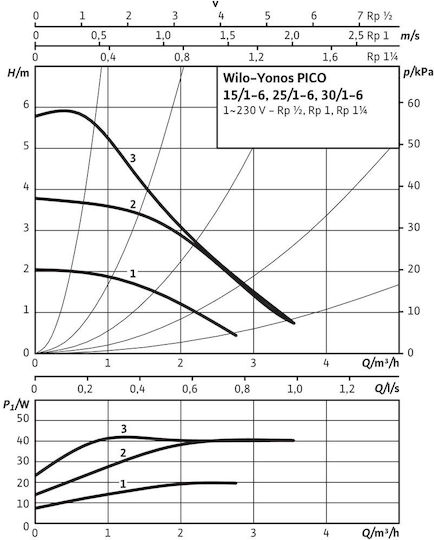

• Maximum delivery head: 6 m
• Maximum flow rate: 2 m³/h
• Connection diameter: 30 mm
• Pipe connection: Threaded, Rp 1¼

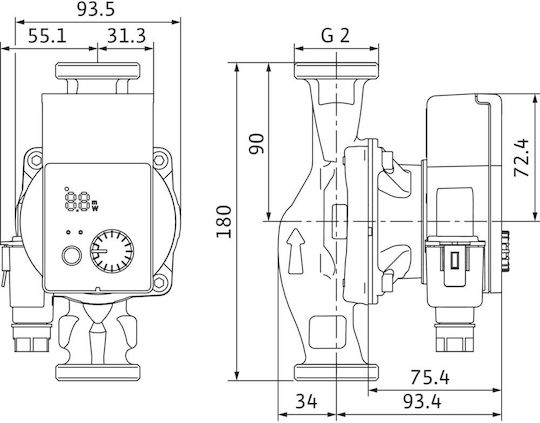

• Length: 180 mm

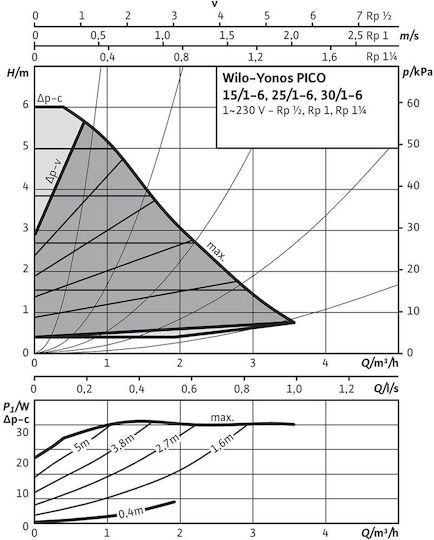

• Control modes: Constant Δp-c and variable Δp-v differential pressure
• Power consumption: 4–40 W
• Minimum power consumption: 4 W
• Rated motor power: 30 W

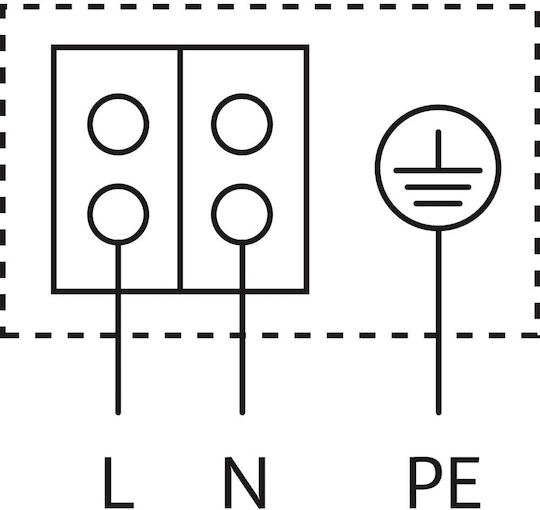

• Power supply: 1~230 V, 50/60 Hz
• Rotational speed: 800–4700 rpm
• Maximum current: 0.44 A
• Energy Efficiency Index (EEI): ≤ 0.20
• Protection rating: IP X2D
• Insulation class: F
• Permitted operating pressure: Up to 6 bar
• Fluid temperature at a maximum ambient temperature of 25 °C: -10 to 110 °C
• Fluid temperature at a maximum ambient temperature of 40 °C: -10 to 95 °C
• Materials: Grey cast iron housing, polypropylene impeller, stainless steel shaft and carbon bearings with metal impregnation
• Package contents: 1 & 1/4" circulator unions
