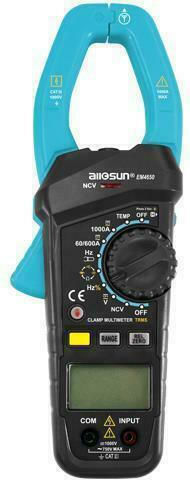

All-Sun Clamp Meter Digital 1000A AC ΕΜ4650
Clamp Meters

All-Sun Clamp Meter Digital 1000A AC ΕΜ4650

  • AC voltage detection without contact
  • Bar graph, unit of measurement display and backlight
  • Sampling rate approximately 3 times/sec
  • Automatic polarity indication
  • Auto range function
  • Data hold function
  • ...
  • AC voltage detection without contact
  • Bar graph, unit of measurement display and backlight
  • Sampling rate approximately 3 times/sec
  • Automatic polarity indication
  • Auto range function
  • Data hold function
  • Relative function
  • MIN MAX function
  • True-RMS measurement
  • Full range overload protection
  • Low power consumption
  • CATIII 1000V

Technical Specifications:

  • AC voltage:...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

  • AC voltage detection without contact
  • Bar graph, unit of measurement display and backlight
  • Sampling rate approximately 3 times/sec
  • Automatic polarity indication
  • Auto range function
  • Data hold function
  • Relative function
  • MIN MAX function
  • True-RMS measurement
  • Full range overload protection
  • Low power consumption
  • CATIII 1000V

Technical Specifications:

  • AC voltage: 6V/60V/600V/750V
  • DC voltage: 6V/60V/600V/1000V
  • DC current: 60A/600A/1000A
  • AC current: 60A/600A/1000A
  • Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
  • Frequency (with clamp): 40.00Hz - 99.99Hz/100.0Hz - 999.9Hz Frequency (with test leads):
  • 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz Duty cycle: 5% ~ 95%
  • Capacitance (using relative function): 40.00nF/400.0nF/4.000μF/40.00μF/400.0μF/4000μF
  • Diode test: The approximate forward voltage drop of the diode will be displayed.
  • Continuity test: The built-in buzzer will sound if the resistance is less than approximately 20Ω.
  • Temperature: -20°C~0°C/0°C~400°C/400°C~1000°C, -4°F~32°F/32°F~752°F/752°F~1832° φ


Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

with Test Leads
No
AC Current
1000 A
Indication
Digital
Bluetooth
No
ISO/NIST Calibration Certificate
Yes

Features & Functions

Inrush Current
-

Inrush Current

Ability to record the instantaneous inrush current (duration ~100ms) absorbed by electric motors, motor-driven devices, and compressors during their momentary startup.
True RMS
No
NCV
No
LoZ (Low Impedance / Low Impedance)
-

LoZ (Low Impedance / Low Impedance)

Low impedance function that absorbs induced/parasitic voltages ("phantom" voltages or ghost voltages) from adjacent cables, ensuring that you measure only the actual line voltage.
VFD Mode / LPF (Low Pass Filter)
-

VFD Mode / LPF (Low Pass Filter)

Integrated low-pass filter that cuts off high-frequency harmonic noise (PWM) produced by variable speed drives, allowing accurate voltage and frequency measurement in Inverters.
Temperature Measurement
Yes

Temperature Measurement

Ability to measure temperature via a connected thermocouple (Type-K terminal), allowing temperature monitoring of pipes, refrigerants, and HVAC components.
Capacitor Capacitance Measurement
Yes

Capacitor Capacitance Measurement

Ability to test and measure capacitor capacitance, allowing the immediate diagnosis of worn starting capacitors in motors, pumps, and compressors.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

  • AC voltage detection without contact
  • Bar graph, unit of measurement display and backlight
  • Sampling rate approximately 3 times/sec
  • Automatic polarity indication
  • Auto range function
  • Data hold function
  • Relative function
  • MIN MAX function
  • True-RMS measurement
  • Full range overload protection
  • Low power consumption
  • CATIII 1000V

Technical Specifications:

  • AC voltage: 6V/60V/600V/750V
  • DC voltage: 6V/60V/600V/1000V
  • DC current: 60A/600A/1000A
  • AC current: 60A/600A/1000A
  • Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
  • Frequency (with clamp): 40.00Hz - 99.99Hz/100.0Hz - 999.9Hz Frequency (with test leads):
  • 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz Duty cycle: 5% ~ 95%
  • Capacitance (using relative function): 40.00nF/400.0nF/4.000μF/40.00μF/400.0μF/4000μF
  • Diode test: The approximate forward voltage drop of the diode will be displayed.
  • Continuity test: The built-in buzzer will sound if the resistance is less than approximately 20Ω.
  • Temperature: -20°C~0°C/0°C~400°C/400°C~1000°C, -4°F~32°F/32°F~752°F/752°F~1832° φ


Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

with Test Leads
No
AC Current
1000 A
Indication
Digital
Bluetooth
No
ISO/NIST Calibration Certificate
Yes

Features & Functions

Inrush Current
-

Inrush Current

Ability to record the instantaneous inrush current (duration ~100ms) absorbed by electric motors, motor-driven devices, and compressors during their momentary startup.
True RMS
No
NCV
No
LoZ (Low Impedance / Low Impedance)
-

LoZ (Low Impedance / Low Impedance)

Low impedance function that absorbs induced/parasitic voltages ("phantom" voltages or ghost voltages) from adjacent cables, ensuring that you measure only the actual line voltage.
VFD Mode / LPF (Low Pass Filter)
-

VFD Mode / LPF (Low Pass Filter)

Integrated low-pass filter that cuts off high-frequency harmonic noise (PWM) produced by variable speed drives, allowing accurate voltage and frequency measurement in Inverters.
Temperature Measurement
Yes

Temperature Measurement

Ability to measure temperature via a connected thermocouple (Type-K terminal), allowing temperature monitoring of pipes, refrigerants, and HVAC components.
Capacitor Capacitance Measurement
Yes

Capacitor Capacitance Measurement

Ability to test and measure capacitor capacitance, allowing the immediate diagnosis of worn starting capacitors in motors, pumps, and compressors.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
