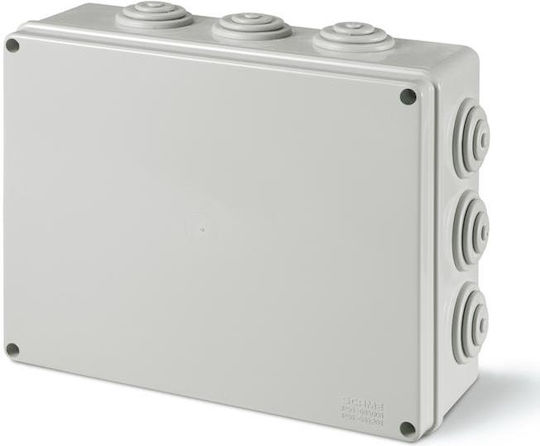

Scame Surface Mounted Electrical Box Branching IP55 in Gray Color
Junction Boxes

Scame Surface Mounted Electrical Box Branching IP55 in Gray Color

Mounting box 100x100x50mm, Scabox, 6 Chokes (685.004)

  • Ingress protection: IP55
  • Number of holes: 6 x Ø29 PG21
  • Protection category: II (insulation)
  • Mechanical strength: IK04 / IK08
  • Dimensions: 100 x...

Mounting box 100x100x50mm, Scabox, 6 Chokes (685.004)

  • Ingress protection: IP55
  • Number of holes: 6 x Ø29 PG21
  • Protection category: II (insulation)
  • Mechanical strength: IK04 / IK08
  • Dimensions: 100 x 100 x 50 mm
  • Operating temperature: -25°C to +60°C
  • UV-resistant material
  • Space for DIN rail installation
  • Glow-wire test 650°C
  • Reference standards: EN 60670-1, EN...
See full description See full description
Review the product
Product report

Description

Description

Mounting box 100x100x50mm, Scabox, 6 Chokes (685.004)

  • Ingress protection: IP55
  • Number of holes: 6 x Ø29 PG21
  • Protection category: II (insulation)
  • Mechanical strength: IK04 / IK08
  • Dimensions: 100 x 100 x 50 mm
  • Operating temperature: -25°C to +60°C
  • UV-resistant material
  • Space for DIN rail installation
  • Glow-wire test 650°C
  • Reference standards: EN 60670-1, EN 60670-22

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Placement
Outdoor
Branching
Yes
Plasterboard
No
Protection Certification
IP55

Protection Certification

It is an indicator that shows us the degree of protection of the box. The indicator (I) which is the first number refers to protection from dust and the indicator (P) which is the second number refers to protection from water. The higher the numbers for each indicator, the better the protection.
Colour
Grey
Length
100 mm
Width
100 mm
Height
50 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Mounting box 100x100x50mm, Scabox, 6 Chokes (685.004)

  • Ingress protection: IP55
  • Number of holes: 6 x Ø29 PG21
  • Protection category: II (insulation)
  • Mechanical strength: IK04 / IK08
  • Dimensions: 100 x 100 x 50 mm
  • Operating temperature: -25°C to +60°C
  • UV-resistant material
  • Space for DIN rail installation
  • Glow-wire test 650°C
  • Reference standards: EN 60670-1, EN 60670-22

Manufacturer

Manufacturer Details

Warnings & Safety Information
Placement
Outdoor
Branching
Yes
Plasterboard
No
Protection Certification
IP55

Protection Certification

It is an indicator that shows us the degree of protection of the box. The indicator (I) which is the first number refers to protection from dust and the indicator (P) which is the second number refers to protection from water. The higher the numbers for each indicator, the better the protection.
Colour
Grey
Length
100 mm
Width
100 mm
Height
50 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
