The extremely compact S8 DSP is ideal for integrating any OEM source into audio upgrade projects for cars, motorcycles, and boats. It is made of metal and composite materials, offering high sound quality.

The S8 DSP processes audio signals at 96 kHz / 24-bit resolution and carries Hi-Res certification from JAS, confirming its outstanding sound performance.

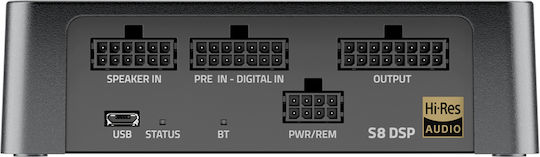

The powerful 32-bit DSP supports 6 analog input channels, one digital coaxial input, and 8 output channels, providing great flexibility. The SPDIF coaxial input is suitable for connecting to a digital playback device, ensuring maximum listening quality.

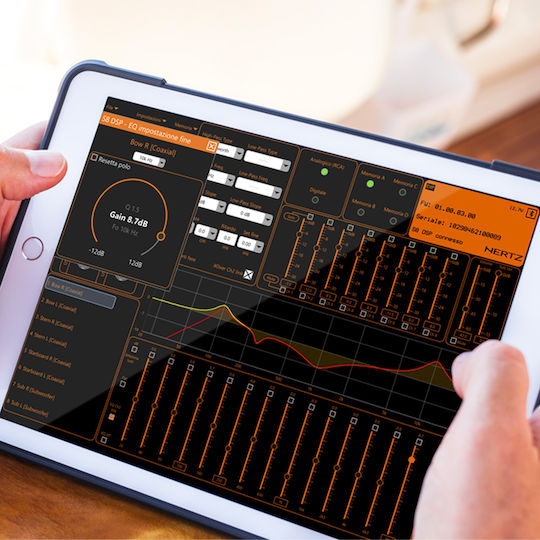

Each output channel features level control, a 15-band parametric equalizer, time delays, and crossover filters. The 7-band parametric equalizer for the input signal allows for smoothing the response from OEM sources, which often overemphasize the low frequency.

• Power supply: 7 ÷ 20 VDC / 1A
• Audio output level: 4V @ 0.05% THD
• Signal-to-noise ratio: 105dBA (Analog Input)
• Delay duration: 0 ÷ 13.5ms
• Available filters: AP/HP/LP/BP for all channels
• DSP chipset: Analog Device: ADAU1451
