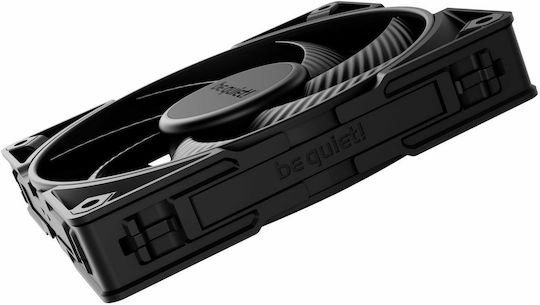

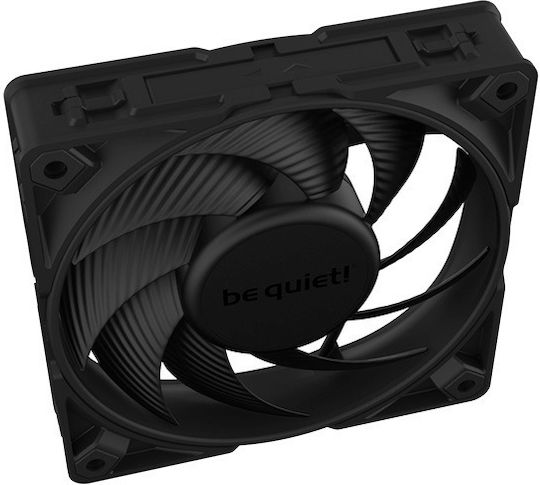

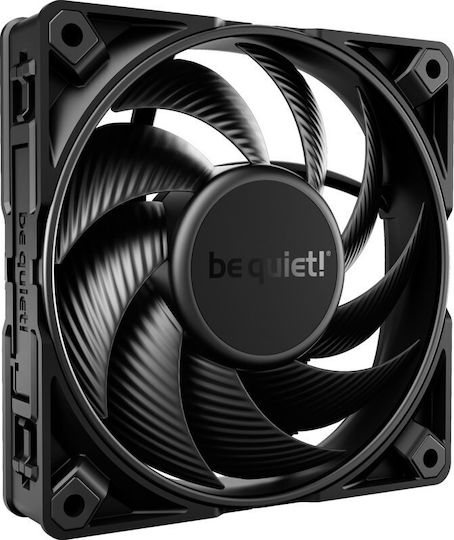

The Be Quiet Silent Wings Pro 4 140mm PWM fan features a 6-pole, 3-phase motor, a fluid-dynamic bearing (FDB), and blades designed for high performance on heatsinks. The small clearance between the blades and frame, together with the funnel-shaped air outlet, helps deliver high air pressure. It connects via 4-pin PWM.
It can be mounted with anti-vibration push-in clips or screws. Its service life is up to 300,000 hours.
- Type: Active air-cooling fan
- Diameter: 140 mm
- Dimensions: 140 x 140 x 25 mm
- Colour: Black
- Lighting: No LED
- Rotational speed: Up to 2,400 rpm
- Airflow: Up to 97.41 cfm / 165.5 m³/h
- Air pressure: 3.65 mmH₂O
- Noise level: 36.8 dB(A)
- Motor: 6-pole, 3-phase
- Bearing: Fluid-dynamic bearing (FDB)
- Connection: 4-pin PWM
- Cable length: 500 mm
- Mounting: Push-in clips or screws

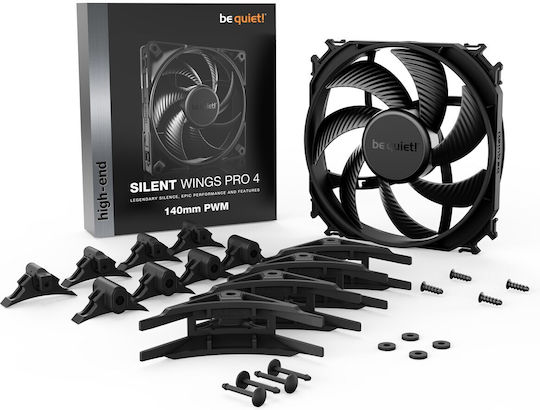

- Package contents: 4 screws and 4 push-in clips
- Service life: Up to 300,000 hours at 25 °C
- Weight: 0.258 kg
- Operating voltage: 7–13.2 V DC
- Current consumption: 0.50 A
- Power input: 6 W
- Certifications: CE, RoHS, RU, UKCA, TÜV, WEEE
Main Specifications
- Dimension
- 140 mm
- Colour
- Black
- Packaging
- 1 pcs
Technical Specifications
- Fan Speed (Max)
- 2400 rpm
- Noise Level (Max)
- 36.8 dB
- Air Flow (Max)
- 97.41 cfm
- Connection
- 4-Pin PWM
- LED Color
- Without LEDs
- Reverse Blade
- No
- Air Pressure
- 3.64 mmH₂O: millimeters of water
