The e500-SL garage door control panel operates single-phase 230 V AC motors for sliding gates, roller shutters and traffic control barriers. It features a built-in 433.92 MHz receiver and supports rolling-code or fixed-code remote controls. The package includes two four-button remote controls.

It supports connections for safety photocells, command buttons, and a warning light or 230 V AC lamp. Settings include automatic closing, motor operating time and torque. It also provides slow-stop, electric braking and pedestrian opening functions via remote control. Diagnostic LEDs indicate the status of inputs, such as photocells, buttons and limit switches.

• Power supply: Single-phase, 230 V AC
• Maximum motor power: 500 W
• Peripheral device power: 3 W
• Remote control frequency: 433.92 MHz
• Coding: Rolling code or fixed code
• Maximum number of remote controls: 200
• Remote controls included: 2, with 4 buttons
• Limit switches: NC type, with automatic recognition
• Automatic closing: Adjustable from 2 to 240 seconds
• Motor operating time: Adjustable from 2 to 240 seconds
• Motor torque adjustment: Via potentiometer
• Motor power output: 230 V AC
• Peripheral device power output: 24 V AC
• Safety photocell support: Yes
• Functions: Slow stop, electric brake, pedestrian opening via remote control, opening only
• Connections: Command button, 230 V AC warning light or 230 V AC lamp
• Diagnostic LEDs: For inputs
• Phase protection: 5 A time-delay fuse
• Enclosure material: ABS plastic
• Operating temperature: -20 °C to +60 °C
• Box dimensions: 145 x 105 x 55 mm
• Board dimensions: 110 x 90 x 45 mm
• Technology: SMD
• Marking: CE
• Manual: In Greek

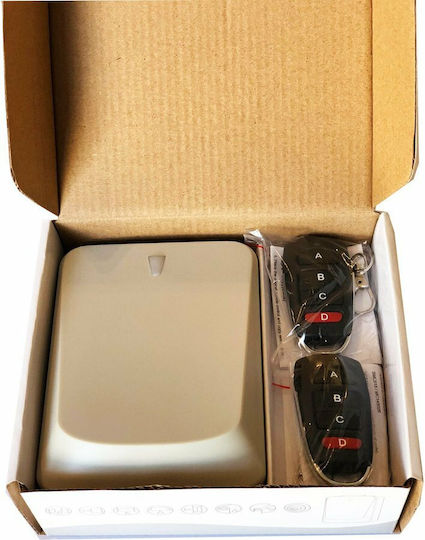

• Package contents: Control board with enclosure, 2 four-button remote controls, user manual
