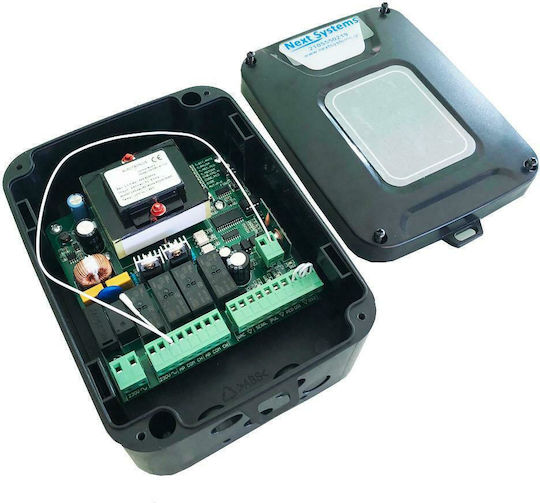

The Next Systems S7-150 garage door control board operates swing gates with one or two leaves and single-phase 230 V AC motors. It supports automatic closing, motor torque adjustment, full or partial pedestrian opening, and smooth deceleration and stopping. The built-in RF receiver can register fixed-code and rolling-code remote controls.

The board has inputs for photocells, full- or partial-opening push buttons, and motion-detection devices, as well as outputs for a warning light. It supports an electric lock connection and features diagnostic LEDs for checking the inputs. Programming is performed using the SEL and SET buttons, and travel time learning is simple.

• Power supply: Single-phase, 230 V AC
• Receiver frequency: 433.92 MHz
• Gate type: Swing gate, with one or two leaves
• Closing: Automatic
• Opening: Full and partial
• Motor adjustment: Torque and slow speed
• Stopping function: Smooth
• Remote controls: Fixed-code and rolling-code
• Safety inputs: For photocells
• Motion-detection inputs: For magnetic loop and infrared sensor
• Outputs: For warning light
• Accessory compatibility: Electric lock, photocells, warning light, and full- or partial-opening push buttons
• Enclosure protection: IP56
• Enclosure material: ABS
• Diagnostics: LED
