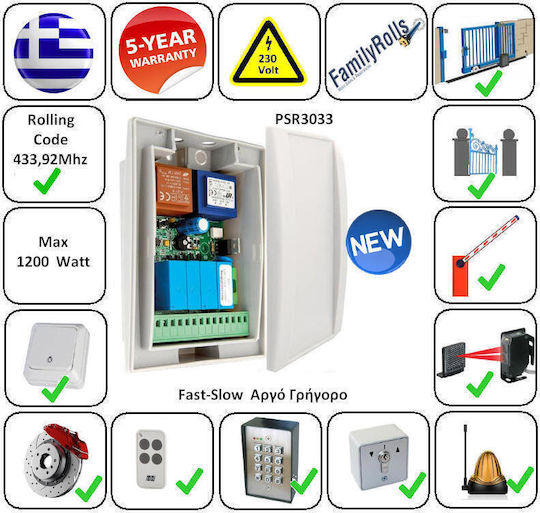

The Profelmnet PSR-3433 garage door control unit operates a single-phase sliding gate motor with a power rating of up to 1,200 W. It supports up to 300 remote controls and features separate limit switches for the motor, as well as LED indicators for activated functions. Its features include automatic closing and automatic motor direction reversal.

• Power supply: Single-phase, 230 VAC
• Motor power: Up to 1,200 W
• Remote control capacity: Up to 300
• Force adjustment: Separate settings for the motor and slow movement
• Slow movement: Selectable during the final part of the closing cycle
• Travel time: Adjustable from 1 to 180 seconds
• Brake: Optional activation
• Input: For an external push button
• Photocell output: With a separate 24 VAC power supply
• Warning light output: 230 VAC, with flashing or steady light selectable, up to 25 W for 3 minutes
• Relay: Spark-free
• Filters: Interference suppression
• Operating temperature: From -20 °C to 60 °C
• Enclosure material: ABS
• Enclosure dimensions: 111 × 82 × 30 mm
