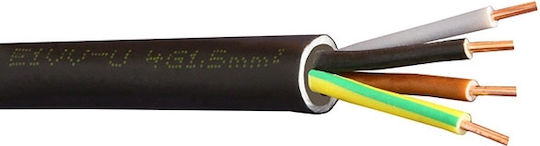

Description

Single-core or multi-core cable with copper single-stranded or multi-stranded conductors, insulation and sheath made of PVC.

Use

In fixed installations in wet or dry areas, in the air or on the ground.

Structure

• Copper conductor(s)
• PVC insulation
• PVC outer sheath

Features

• Conductor Material: Copper
• Insulation: PVC
• Outer sheath: PVC
• Sheath color: Black
• Conductor Type: U
• Conductor Flexibility: single-stranded, class 1
• Conductor Shape: circular
• Yellow-green pole: Yes
• Number of poles: 4
• Conductor Cross-section: 4mm²
• Weight (approximately): 345kg/km
• Nominal outer diameter: 15.0mm
• Nominal voltage Uo/U: 0.6/1 kV
• Maximum conductor resistance at direct current, 20° C: 4.61Ohm/km
• Permissible current intensity on the ground: 45A
• Permissible current intensity in the air: 35A
• Voltage drop, 3 phases: 7.6V/A.km
• Cable flexibility: Solid
• Mechanical resistance to impact: Good
• Maximum conductor temperature: 70°C
• Maximum short-circuit temperature: 160°C
• Resistance to weather conditions: Very good
• Flame retardant: Yes
