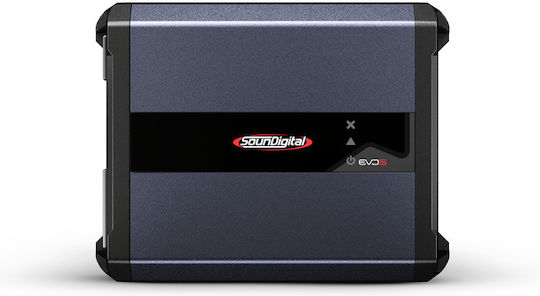

The 1600.1 EVO 5 amplifier is a compact and modern amplifier that offers 1600W RMS power in 1 channel.
Special features:
-
Power capability:
- 1Ω: 1 X 1600 WRMS
- 2Ω: 1 X 1056 WRMS
- 4Ω: 1 X 697 WRMS
- Frequency range (-3dB): 5Hz ~ 25kHz
- Subsonic filter: 5Hz ~ 80Hz
- Low Pass filter: 50Hz ~ 1kHz
- Bass Boost: 0dB ~ 12dB @ 50Hz
- Power voltage: 9V ~ 16V
-
Signal-to-Noise Ratio:
- 1Ω: 93.7dB
- 2Ω: 95dB
- 4Ω: 93.4dB
- Input sensitivity: 0.2V ~ 2V
-
Music consumption:
- 1Ω: 75A
- 2Ω: 71A
- 4Ω: 69.4A
-
Overall efficiency:
- 1Ω: 85%
- 2Ω: 89%
- 4Ω: 91.5%
-
Dimensions:
- Width: 13.6 cm
- Length: 18 cm
- Height: 5.48 cm
- Weight: 1.13 kg
- Number of Channels
- 1 Channel
- Amplifier class
- A
