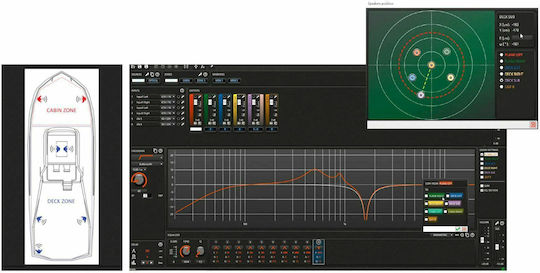

The HMD8 DSP 24V, with Hertz Marine DSP technology, offers high levels of enjoyment while sailing. The user-friendly PC-Software DSP interface simplifies installation, maximizing the performance of the speaker system.

Driving capability:

• 8 * 85 W or 4 * 260 W (RMS @ 4Ω)

Features:

• Absolute control of the speaker system with clear SPL sound in up to 3 boat zones.
• Durable casing made from extruded aluminum with anti-corrosive PCB.

General Specifications:

• Power supply voltage: 22 ÷ 34 VDC / 2 x 15A
• Consumption @ 14.4 VDC, 2Ω, Maximum Music Capability: 27.5 A

Audio Specifications:

• Signal complexity: 0.06% THD @ 1 kHz, 4Ω, 70% Rated Capacity
• Required minimum load: 2Ω

Output Capability:

• 8Ch @ 4Ω: 85 W x 8
• 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 260 W x 4

Physical Dimensions:

• Maximum size: 238 x 49.5 x 155 mm
• Weight: 1.98 kg
