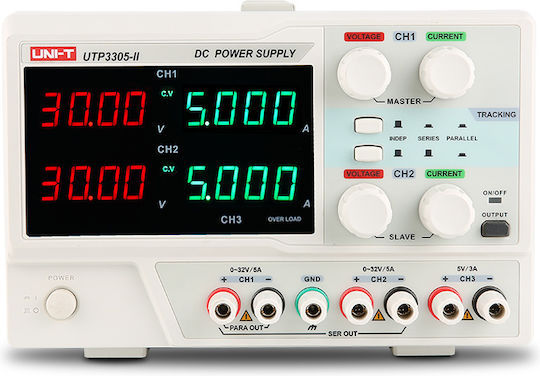

Uni-T UTP3305-II Laboratory Power Supply with 3 Channels 2x 0~32V/0~5A, 1x 5V/3A

Name: Uni-T UTP3305-II Laboratory Power Supply with 3 Channels 2x 0~32V/0~5A, 1x 5V/3A
Brand: Uni-T
SKU: 37453932
Price: 279.9 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

3-channel bench power supply ideal for use in laboratories, service centers, etc. It is equipped with two variable voltage and current channels and one fixed 5V voltage channel. It features a voltage and current display screen, a cooling system for temperature control, and overload protection.
It has a handle on the top for easy transport.

See full description See full description

279 90 €

Delivery by Wed, 24 Jun

32,00 € shipping cost

Sent from Greece

From Grobotronics 4.9 (52)

4.9 (52 reviews)

Greece

2 pieces

See Energy on the page of Grobotronics

Description

Features

Channel 1-2 output voltage: 0~32V
Channel 3 output voltage: 5V
Channel 1-2 output current: 0~5A
Channel 3 output current: 3A
Output power: 335W
Load regulation: CV<0.01% +3mV, CC</=0.2% +3mA
Ripple and noise: CV</=1mVrms, CC</=3mArms
Output regulation resolution: CV: 10mV (typical), CC: 1mA (typical)
Tracking bias: +/- (0.1% of reading + 30mV), CC: +/- (0.3% of reading + 5mA), CC: +/- (0.3% of reading + 10mA)
Reliability: MTBF(e): >/=2000hrs
Display mode: 4-bit voltage and current dual display
Input voltage: 115V AC/230V AC
Frequency: 47Hz~63Hz
Product size: 319 x 146 x 226mm
Product net weight: 10.5kg

Manufacturer

Uni-T - Laboratory Power Supplies Uni-T

See full description

Specifications

Channel Output: 3 Channels

Maximum Output Voltage: 32 V

Maximum Output Power: 5 A
