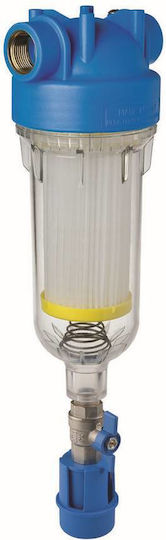

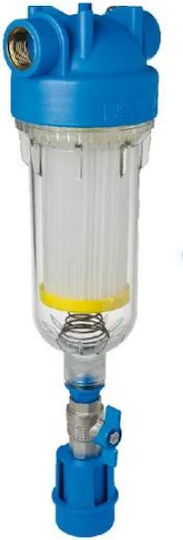

Self-Cleaning Water Filter Hydra With Pleated Screen RSH 50μm Atlas Filtri

• Maximum operating pressure: 8 bar (116 psi)
• Minimum operating pressure: 1.8 bar (26 psi)
• Maximum operating temperature: 45°C (113°F)
• Minimum operating temperature: 4°C (39.2°F)
• Replacement plastic screen RSH: Filtration density: 50μm
• Replacement time: Approximately 2 years
• Maintenance: Rinse every 1-2 months
• Removes: particles, sediments, and suspended matter (dirt, stones, mud, rust)
• Made from non-toxic materials, suitable for drinking water:
• Head: Reinforced polypropylene
• Bowl: PET
• Air release valve: Stainless steel
• Sealing & valve gasket: EPDM
• Inlet/outlet threads: Brass CW 617 N
• Self-cleaning valve: Gold-plated brass CW 614 N
• Drain & hose connection: Reinforced polypropylene
• Replacement pleated polypropylene screen RSH: Filter: Polypropylene
• Inner ring & caps: Polypropylene
• Sealing gaskets: SEBS with antimicrobial technology

• It is recommended to use a pressure reducer before installing any filter.
• During installation, use only Teflon tape where necessary.
• When changing the replacement filter, clean the bowl gasket, wipe it dry, apply lubricant (lubrikit), and place it back.
• When the gasket is worn out, it needs to be replaced.
