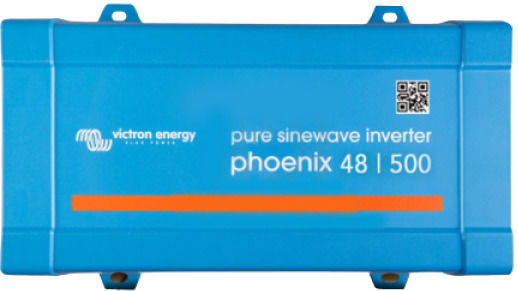

Pure Sine Victron Phoenix Inverter 48/500 VE.Direct Schucko 500VA 48V

VE.Direct communication port

• The VE.Direct port can be connected to:
• Computer (VE.Direct to USB cable required)
• Smartphones, tablets, MacBook, and other Apple and Android devices (VE.Direct Bluetooth Smart dongle required)

Fully configurable:

• Alarm and restart levels for low battery voltage
• Low battery voltage shutdown and restart
• Dynamic cut-off: load-dependent cut-off level
• Output voltage 210 – 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode detection level

Monitoring:

• Input and output voltage, %25 load and alarms

Proven reliability

The full bridge topology with toroidal transformer has proven its reliability over many years. The inverters are protected against short circuits and overheating, whether due to overload or high ambient temperature.

High start-up power

Necessary to start loads such as energy converters for LED lamps, halogen lamps, or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load drops below a preset value (minimum load: 15W). Once in standby, the inverter will turn on for a short period (adjustable, default: every 2.5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off

A remote on/off switch can be connected to a two-pole connector or between the battery's positive terminal and the left contact of the two-pole connector.

To transfer the load to another AC source:

The Filax automatic transfer switch for our low-power inverters is recommended. The Filax has a very short switching time (less than 20 milliseconds) so that computers and other electronic devices continue to operate without interruption.

Capabilities:

• Capacity: 500VA
• Peak Capacity: 900W
• Output Voltage: 230VAC
• Dimensions (mm): 86 x 172 x 275
• Protection Standard: IP21
• 5-year warranty
