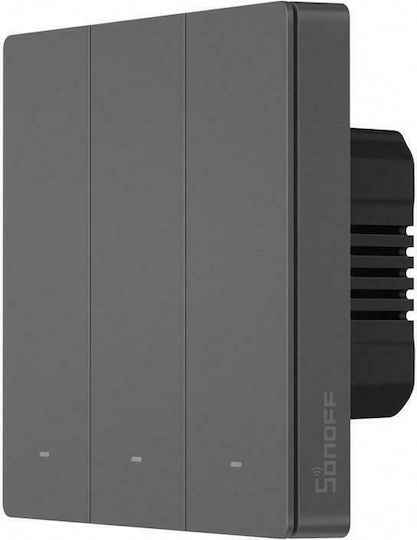

The Sonoff M5-3C-86 flush-mounted switch controls three lighting circuits via Wi-Fi and the eWeLink app. You can create schedules and smart scenes in the app, and adjust the LED backlight brightness. It has three physical buttons and is compatible with Alexa, Apple HomeKit and Google Home.
It is made of fire-resistant PC V0 plastic. The Wi-Fi connection operates on the 2.4 GHz frequency, and the switch can be paired with an NSPanel or Sonoff R5 to control one light from two switches.
- Installation: Flush-mounted
- Number of switches: 3
- Type: Complete
- Function: Lighting
- Colour: Grey
- Connectivity: Wi-Fi IEEE 802.11 b/g/n, 2.4 GHz
- App control: eWeLink for Android and iOS
- Voice assistant control: Siri, Alexa and Google Assistant
- Smart ecosystems: Alexa, Apple HomeKit and Google Home
- Illuminated: Yes, with an LED backlight with adjustable brightness

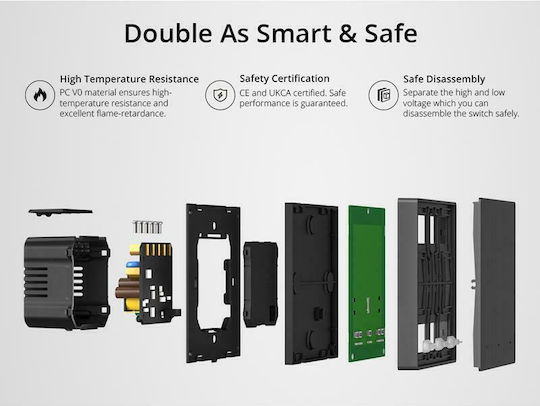

- Material: Fire-resistant PC V0 plastic
- Operating voltage: 100–240 V AC, 50/60 Hz
- Maximum output current: 6 A, 2 A per channel
- Maximum power: 1320 W, 440 W per channel
- Operating temperature: -10 °C to 40 °C
- Dimensions: 86 × 86 × 41.5 mm
- Package contents: Switch, 2 screws, user manual
- Product Number
- M5-3C-86
Specifications
- Placement
- Recessed
- Switch Type
- Complete
- Switch Type
- Basic
- Number of Switches
- Triple
- Mode
- Lighting
- Colour
- Grey
Functions
- Aller Retour
- No
- Medium
- No
- Illuminated
- Yes
- Waterproof
- No
- Battery-powered
- No
Smart Attributes
- Smart Ecosystem
- Alexa, Apple HomeKit, Google Home
- Connectivity
- Wi-Fi
