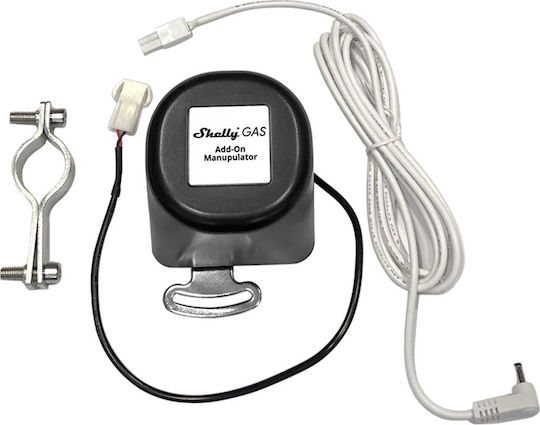

The Shelly GAS AddOn Manipulator is a motor-operated valve actuator specifically designed for Shelly Gas sensor products (CNG and LPG versions). It connects directly to the Shelly gas sensor, allowing for the automatic shutdown of gas via the motorized valve actuator in case of gas detection. It is completely Plug & Play, requiring no configuration.

Installation:

• In the case of CNG, the AddOn must be mounted on the gas pipe with the provided clamp, compatible with pipe sizes of 1/2, 3/4, 1, 1.25, 1.5 inches.
• In gas bottles, the AddOn connects in the section between the bottle and the pressure reducer.
• The gas valve can be operated manually if the safety lock at the bottom of the AddOn is removed.

Product Features:

• Motor-operated valve actuator for gas valve (or water valve)
• DC power supply 9V - 12V, 100mA - 600mA
• Operating humidity < 95%
• Operating pressure 86 - 106kPa
• Operating temperature -10ºC to +55ºC
• Lifetime 5 years
