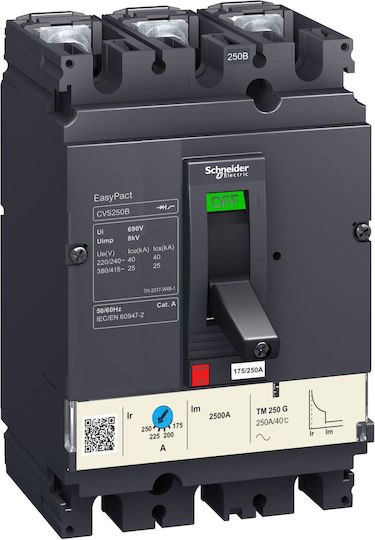

Power switch 250A 3P 36kA EasyPact CVS250 TM250D

• Number of poles: 3
• Operating voltage: 440 V AC
• Short-circuit breaking capacity: 36 kA
• Trigger: thermomagnetic
• Current: 250 A
• Overload protection: yes
• Short-circuit protection: yes
• Network frequency: 50/60 Hz
• Controller/switch: with lever
• Installation: permanently mounted device
• Insulation voltage: 690 V
• Overvoltage: 8 kV
• Mechanical durability: 20,000 cycles
• Height: 161 mm
• Width: 105 mm
• Depth: 86 mm
• Insulation class: II
• Pollution degree: 3
• Protection level: IP40
• IK protection level: IK07
