The device collects information about the operation of the detector in encrypted form, analyzes the data, and in case of an alarm, notifies the system owner and the central monitoring station in just milliseconds.

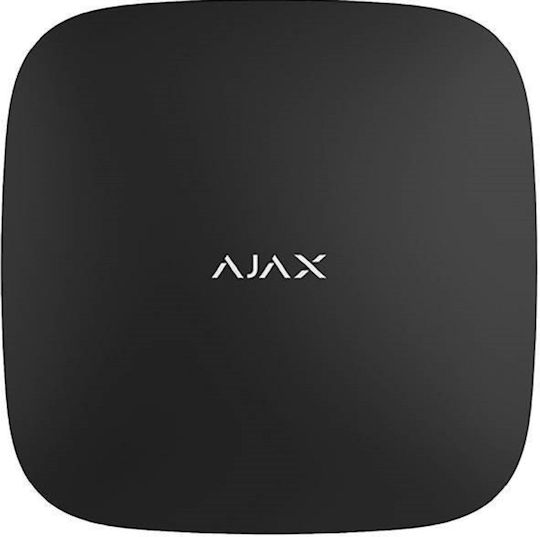

The smart control panel Hub is a key component of the Ajax security system. The device monitors the operation of all Ajax detectors and immediately sends an alarm signal to the owner and the central monitoring station.
Operating principle
The device collects information about the operation of the detector in encrypted form, analyzes the data, and in case of an alarm, notifies the system owner and the central monitoring station in just milliseconds.
Functions
The device uses technology to monitor the detectors and ensure a quick response to danger. It converts the entire system to clear frequencies during jamming. The device is protected from viruses at the software level.
Safe home and office automation
Enhance your security system's capabilities with scenarios to actively counter threats it detects and automate your routines. Activate night mode according to the schedule. Automatically turn off all office lights by arming the system. Schedule outdoor lights to spotlight intruders when they trigger an outdoor motion detector or install a sustainable flood prevention system. The system continues to execute scenarios even if the connection to Ajax Cloud is lost.
Installation and setup
Ready to operate straight out of the box. It is configured using the mobile app and the detectors connect with a single click. It can be installed within minutes using the SmartBracket mount.
At a glance
- Size: 162.7 x 162.7 x 35.9 mm
- Weight: 320 g
- Voltage: 110-250 V AC
- Radio signal power: 25 mW
- Operating temperature range: From 0 ° C (+ 32 ° F) to + 50 ° C (+ 122 ° F)

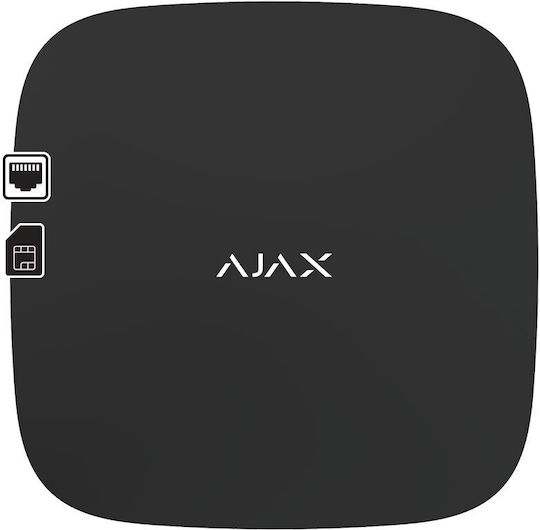

- Connection: GSM (850/900/1800/1900 MHz), Ethernet
- Communication protocol: Jeweller (868.0-868.6 MHz)
- Compatible SIM cards: Mini SIM 2G
- Operating range: Up to 2,000 m (6,552 ft) (in open space)
- Backup battery: Li-Ion 2 Ah (battery life up to 15 hours)
- Available applications: iOS 9 or later, Android 4.1 or later
- Video monitoring: Video cameras with RTSP
- Maximum number of users: 50
- Maximum number of connected devices: 100
The package includes:
- Ajax Hub
- Power cable
- Ethernet cable
- Installation kit
- GSM starter kit *
- Manual
What should I consider before buying a Smart Hub?
- Compatibility: Ensure that the smart hub you choose is compatible with the devices you have in your home. Check the smart hub's specifications and make sure it supports your devices.
- Platform: Ensure that the smart hub supports the software platform you wish to use. Some smart hubs use different platforms, so make sure you have the correct platform for the smart hub you want to purchase.
- Security: Ensure that the smart hub you choose has good security practices and is updated for the latest security threats. Smart hubs are connected to the internet and can be a target for malicious attackers.
- Features: Ensure that the smart hub you choose has all the functions you need.
Product Guides
- Product Number
- 7559.01.BL1
- Wireless
- Yes
- GSM
- Yes
