Technical Specifications

Frequency

Dual Band (2.4 & 5GHz)

Frequency

The frequencies at which the Access Point can transmit.
2. Additional frequencies allow for greater speed on more devices.

Dual Band (2.4 & 5GHz)

They transmit signals on two frequencies. They offer higher speeds compared to single and connect more devices. The 2.4Ghz frequency is the most common and, as it has a large range, is usually congested by neighboring Wi-Fi signals, making communication between devices more difficult. The 5Ghz provides higher speeds than the 2.4Ghz but is more sensitive to obstacles (e.g. walls) that reduce its range. This difference, as well as its more limited use, helps to have fewer interferences from other networks.

Maximum WLAN Speed

1167 Mbps

Maximum WLAN Speed

Theoretical maximum speed with one wirelessly connected device, mainly used for marketing purposes. The speed that each connected device will have depends on the distance, obstacles, how many other devices are connected, how many other networks exist in the same area, etc.

Wi-Fi Generation

Wi‑Fi 5

Wi-Fi Generation

Wi‑Fi 5

The most widespread Wi-Fi standard, significantly faster than Wi-Fi 4. Wi-Fi 5 can meet the needs of most users for now. The next generation (Wi-Fi 6) began to be released in 2019 and offers the ability to connect many more devices to accommodate the increasing number of smart devices in a home.

Each newer generation is compatible with devices that support a previous one.

IEEE Networking Standards

802.11a, 802.11 b/g/n, 802.11ac

LAN speed

100 Mbps

Wi-Fi Mesh Network

Yes

Wi-Fi Mesh Network

Technology that allows the creation of a unified, flexible network where multiple Access Points work together to provide broader and more stable Wi-Fi coverage. Ideal for large homes, offices, and businesses.

Ethernet Backhaul

No

Ethernet Backhaul

The wired connection between access points using an Ethernet cable, so that their communication does not burden the wireless network. It offers greater stability, higher speeds, and better coverage compared to wireless backhaul.

Antenna Power (max)

2 dBi

Antenna Power (max)

Indicates how "directional" the antenna's signal is. A higher value means greater range in a specific direction, while a lower value offers more uniform coverage around the device.

Transmit Power (max)

30 dBm

Transmit Power (max)

Indicates how strong the signal emitted by the device is. A higher value means a stronger signal and greater range, always depending on the space and conditions.

PoE Support

PoE

PoE Support

PoE

Device powered through the network cable, without a separate power adapter. Offers simple installation with a single cable.

MIMO Technology

2x2

MIMO Technology

Technology that uses multiple antennas for simultaneous sending and receiving of data. This improves the speed and stability of Wi-Fi, especially when there are many connected devices.

General Characteristics

Placement

Indoor

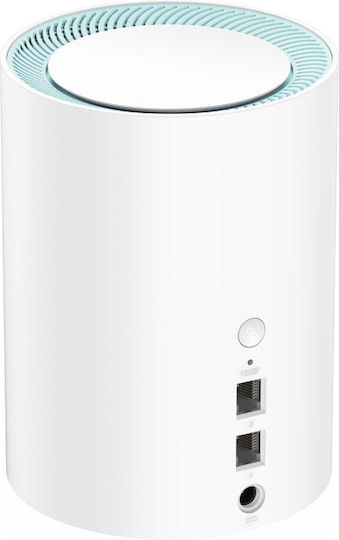

Ethernet Ports

1

Ethernet Ports

Wired connection capability through an Ethernet network port. It allows connection via Ethernet cable, ensuring a stable and reliable connection, high data transfer speeds, and reduced interference compared to Wi-Fi.

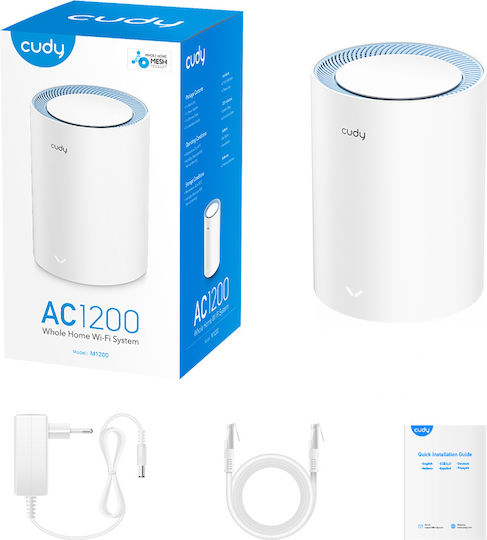

Packaging

Single Kit

Installation Type

Ceiling

No

Ceiling

Ceiling installation for uniform coverage of the area from above. Ideal for offices, shops, and professional spaces.

Wall

Yes

Wall

Wall mounting for targeted coverage of specific areas or rooms. Suitable for more flexible installations.

Board games

Yes

Board games

Placement on a surface (e.g. desk or shelf) without permanent installation. Ideal for easy use and quick setup.
