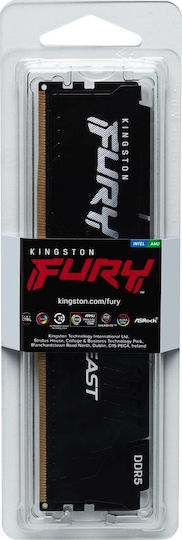

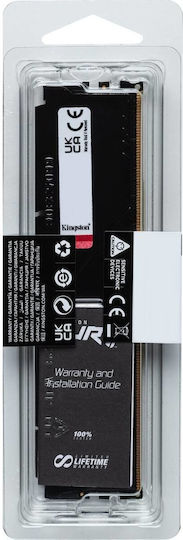

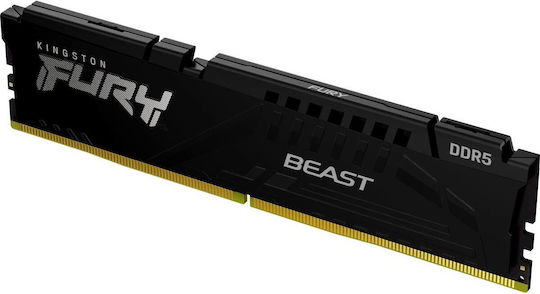

Kingston Fury Beast DDR5 with Module 1x16GB and Speed 5600 for Desktop
Memory RAM

Kingston Fury Beast DDR5 with Module 1x16GB and Speed 5600 for Desktop Code: KF556C36BBE-16

Key features:

  • 2G x 64-bit (16 GB)
  • DDR5-5600 CL36 SDRAM
  • JEDEC 40-39-39 at 1.1 V
See full description

  • Speed

    The main characteristic of memory speed.

    It should be supported by the motherboard, there is no point in installing memory of higher speed than what the motherboard supports.
  • Type DDR5

  • Computer Type

    The type of computer for which the memory is intended.

  • CAS Latency

    The response time of the RAM memory to the commands received by the system.

    The smaller the better for memories with the same frequency, otherwise the frequency is more important for the speed of the memory.
  • See all
Product report

Description

Description

The Kingston FURY KF556C36BBE-16 is a 2G x 64-bit (16GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 1Rx8 memory module, based on eight 2G x 8-bit FBGA components per module.
The module supports AMD® EXPO v1.0 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to operate at DDR5-5600 with low-latency timing of 36-38-38 at 1.25V. The SPD is programmed to DDR5-4800 standard JEDEC latency timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contacts. The standard JEDEC electrical and mechanical specifications are as follows:

  • Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
  • EXPO Profile #0: DDR5-5600 CL36-38-38 @1.25V
  • EXPO Profile #1: DDR5-5200 CL40-40-40 @1.25V
  • XMP Profile #1: DDR5-5600 CL36-38-38 @1.25V
  • XMP Profile #2: DDR5-5200 CL40-40-40 @1.25V
  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • PP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • Height 1.37” (34.9mm), w/heatsink

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
KF556C36BBE-16

Main Specifications

Total Capacity
16 GB

Total Capacity

The amount of information that can be held by RAM memory. For most uses, a capacity of 8-16GB is recommended depending on requirements.
Type
DDR5
Speed
5600

Speed

The main characteristic of memory speed.

It should be supported by the motherboard, there is no point in installing memory of higher speed than what the motherboard supports.
Computer Type
Desktop

Computer Type

The type of computer for which the memory is intended.
Size
DIMM GB

Size

The physical size of the RAM. The motherboard must support the corresponding size.

DIMM: This is the classic large memory module mainly used in desktop computers.

SODIMM: This is a smaller version of DIMM, designed for laptops and devices with limited space.

LCAMM2: A new RAM technology, with a much slimmer size and double the data bus width, allowing for higher speeds and greater performance in thinner laptops.

DIMM

The standard physical size of RAM memory for desktop computers.
Device Group
Gaming
UDIMM
-

UDIMM

It is the "classic" type of RAM used by most home computers and gaming PCs for decades.
CUDIMM
No

CUDIMM

Clocked Unbuffered DIMM. This is the new DDR5 standard designed to break the barrier of very high speeds. It features an additional chip on the RAM stick called the Client Clock Driver (CKD). Requires support from CPU/Motherboard (e.g. Intel Arrow Lake and later)

Special Features

Modules
1

Modules

The number of memory sticks. The motherboard should have the corresponding number of slots.

Often, the use of multiple sticks is preferred, allowing them to operate in parallel (e.g. dual channel), which offers better performance. To operate memory sticks in parallel, the motherboard must support it.
CAS Latency
40

CAS Latency

The response time of the RAM memory to the commands received by the system.

The smaller the better for memories with the same frequency, otherwise the frequency is more important for the speed of the memory.
Memory Profile
Intel XMP, AMD EXPO
RGB Lighting
No

RGB Lighting

It features built-in RGB lighting with multiple colors.

The RGB lighting can take on various shades by combining the colors red, green, and blue, offering a modern aesthetic result.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
