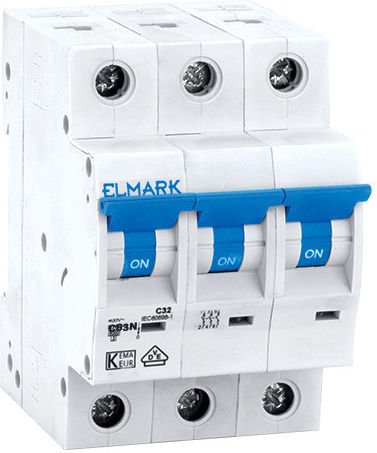

Elmark Automatic Circuit Breaker 20A Triple-pole AC 41320C
Automatic Circuit Breaker

Elmark Automatic Circuit Breaker 20A Triple-pole AC 41320C

MINI AUTOMATIC CIRCUIT BREAKER C63N 20A 3P 6kA CURVE C NEW

  • Rated voltage: 400V
  • Rated current: 20A
  • Number of poles: 3
  • Dimensions (mm): L:72/W:54/H:81
  • Breaking curve: C
  • Breaking capacity: 6 kA

MINI AUTOMATIC CIRCUIT BREAKER C63N 20A 3P 6kA CURVE C NEW

  • Rated voltage: 400V
  • Rated current: 20A
  • Number of poles: 3
  • Dimensions (mm): L:72/W:54/H:81
  • Breaking curve: C
  • Breaking capacity: 6 kA
See full description See full description
Review the product
Product report

Description

Description

MINI AUTOMATIC CIRCUIT BREAKER C63N 20A 3P 6kA CURVE C NEW

  • Rated voltage: 400V
  • Rated current: 20A
  • Number of poles: 3
  • Dimensions (mm): L:72/W:54/H:81
  • Breaking curve: C
  • Breaking capacity: 6 kA

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
3
Rated Current
20 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

MINI AUTOMATIC CIRCUIT BREAKER C63N 20A 3P 6kA CURVE C NEW

  • Rated voltage: 400V
  • Rated current: 20A
  • Number of poles: 3
  • Dimensions (mm): L:72/W:54/H:81
  • Breaking curve: C
  • Breaking capacity: 6 kA

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
3
Rated Current
20 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
