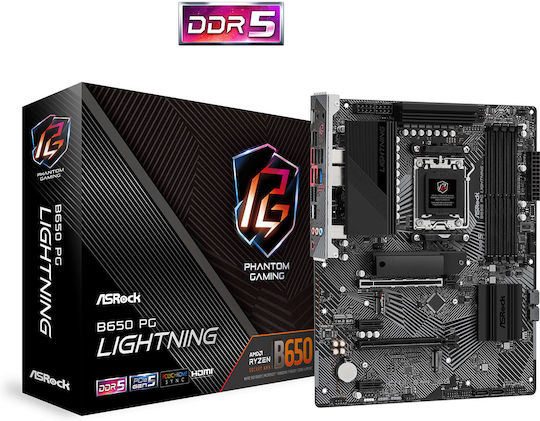

ASRock B650 PG Lightning Motherboard ATX with AMD AM5 Socket
Motherboards

ASRock B650 PG Lightning Motherboard ATX with AMD AM5 Socket

Key features:

  • 4 DDR5 Ram slots up to 6400(O.C.)
  • For AMD Ryzen 7000 processors
  • Support for 2x PCI Express 4.0 x16
  • HDMI 2.1 connection
  • Slots for 4x Sata III and 3x M.2
  • 8 USB 3.2 ports, 4 USB 2.0 ports
See full description

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    ATX

    Classic size with full feature support and many expansion slots.

  • Usage

    Desktop

    Motherboards designed for use in desktop computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all
Product report

Description

Description

The ASRock B650 PG Lightning motherboard is aimed at writers, content creators, and gamers seeking high performance combined with advanced features. It offers support for 12th generation Intel processors (Alder Lake), integrated graphics support (iGPU), and a number of features that make it an ideal choice for use in high-performance systems such as gaming consoles, workstations, or multimedia systems.

Additionally, the ASRock B650 PG Lightning features advanced overclocking and cooling functions, providing extra flexibility for advanced users looking for even more performance from their system.

  • Supports AMD Ryzen 7000 Series processors
  • 14+2+1 phase power design, SPS
  • 4 x DDR5 DIMMs, supports up to 6400+(OC)
  • 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
  • Graphics output options: 1 HDMI
  • HD 7.1 CH audio (Realtek ALC897 audio codec), Nahimic Audio
  • 1 Blazing M.2 (PCIe Gen5x4),
  • 1 Hyper M.2 (PCIe Gen4x4),
  • 1 M.2 (PCIe Gen4x2),
  • 4 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (rear),
  • 1 USB 3.2 Gen2 Type-C (front),
  • 9 USB 3.2 Gen1 (7 rear, 2 front),
  • 8 USB 2.0 (4 rear, 4 front)
  • Realtek 2.5G LAN

Support for DDR5 XMP & EXPO

ASRock, which stems from the design concept "built for stable and reliable", does not compromise on any detail. All B650 motherboards are built with an 8-layer PCB design, allowing enthusiasts to enjoy boosting DDR5 memory overclocking performance up to 6400MHz and beyond by enabling pre-tested profiles. Ensure that the memory modules are capable of AMD EXPO/ Intel XMP and overclocking can become so affordable, satisfying, and sweat-free.

Blazing OC Tuner

The Blazing OC Tuner allows the AM5 CPU to switch between OC mode and PBO (Precision Boost Overdrive) mode when the CPU current reaches the limit. Anything above the current threshold will trigger manual OC mode - if it is below the current limit, then it will activate Precision Boost Overdrive mode.

This idea is to combine all-core overclocking and single-core auto boost to achieve the best possible performance of your CPU. There is no need to enter the BIOS for the setup, you can modify all settings in real-time under the operating system.

Fast Ports for Gaming

Polychrome RGB

This motherboard features built-in RGB connections and an addressable RGB connection that allow the motherboard to connect with compatible LED devices, such as strips, CPU fans, coolers, cases, and so on. Users can also synchronize the RGB LED devices to the certified Polychrome RGB Sync accessories to create their own unique lighting effects.

PCIe Gen5 Blazing M.2

The Blazing M.2 hosts the latest PCI Express 5.0 standard for double the bandwidth compared to the previous generation, with an astonishing transfer speed of 128GB/s, it is ready to unleash the full potential of future ultra-fast SSDs.

XXL M.2 Heatsink

The very large M.2 heatsink made of aluminum alloy effectively improves heat dissipation to keep high-speed M.2 SSDs as cool as possible, being able to offer better stability while maintaining top performance.

2.5 Gb/S LAN

The intelligent LAN platform Phantom Gaming 2.5Gb/s is designed for maximum networking performance for the demanding requirements of home networking, content creators, online gamers, and high-quality streaming media. Enhancing networking performance up to 2.5 times the bandwidth compared to standard Gigabit Ethernet, you will enjoy the fastest and uncompromised connectivity experience for gaming, file transfers, and backups.

It automatically detects and accelerates gaming traffic ahead of other network traffic for smoother in-game performance without lag and a competitive edge.

BIOS Flashback

Get the most convenient BIOS flashback with a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply, without requiring a CPU, RAM, or other components.

Pre-installed IO shield

ASRock strives to offer only cutting-edge technology with the most user-friendly design. The pre-installed IO Shield design makes the motherboard fit well into the case with precision to avoid interference and speed up the installation process.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

ATX
Classic size with full feature support and many expansion slots.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
AMD
Models
Ryzen
Supported CPU Generation
Zen 4
Socket
AM5

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
AMD B650

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
6400OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 4.0
2 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 5.0 Port, 2 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
4 USB 2.0 Ports, 7 USB 3.2 Ports
Rear USB-C outputs
1 USB 3.2 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
HDMI

Specifications

RGB Lighting
Yes
WiFi/Bluetooth
No
Extra
Bios Flashback

Extra

Bios Flashback

Ability to update the BIOS without requiring a CPU and RAM installed on the motherboard. This advanced feature is intended for experienced users and is useful for supporting newer processors on older motherboards. Please refer to the manufacturer's instructions for the process, as it may vary between manufacturers.

For example, if you want to install a Ryzen 5000 series processor on a chipset that only supports it after a BIOS upgrade, BIOS Flashback can be used without having an older processor on the motherboard.

Sound

Sound Card Channels
7.1

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (7)

Reviews

4.0
7
4.0
Review this product
  1. 1
  2. 5
  3. 1
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • Number of ports
  • Easy hardware connection to the motherboard
  • Easy installation in the case
  • Reliability
  • Value for money
  • Temperature
  • Number of BIOS functions
  • Konstantinos_Stampoulis32
    3
    Konstantinos_Stampoulis32

    Verified purchase

    Typically good, but the ethernet would disappear in one out of three startups or wake ups. Regardless of the operating system, it was tested on Windows and Linux with the same problem. In the end, I installed a pci ethernet and found peace of mind.

    Translated from Greek ·
    Did you find this review helpful?
  • eren_yega
    4
    eren_yega

    Verified purchase

    It's fine, just sometimes it takes a while to boot, maybe due to RAM compatibility but I'm not sure

    Translated from Greek ·
    Did you find this review helpful?
  • Dimitrios_MacedoniaGR
    4
    Dimitrios_MacedoniaGR

    Verified purchase

    I don't like the BIOS environment, it's a bit confusing functionally, and the graphical interface compared to MSI and Gigabyte is inferior. Aside from that, there are no issues with the 7800X3D, and updates are frequent.

    Translated from Greek ·
    Did you find this review helpful?
  • apostkarat
    4
    16 out of 18 members found this review helpful
    apostkarat

    Verified purchase

    The motherboard is solid. It has its problems, but for the price, I think they are justified.
    Let me start by saying that I am impressed by the number of ports on the rear IO and the possibilities for future upgradability. Then, there is plenty of space for components, meaning that the top PCIe slot can fit a 3-slot card and leave room for the bottom PCIe slot to be used as well. Furthermore, there won't be any issues with poorly printed parts, and both the RAM and CPU fit properly without any grinding, which is common in some budget solutions. Additionally, it is lightning-fast, so it supports RGB through the BIOS, which is definitely a positive aspect for those interested.
    However, on the negative side, the BIOS feels like it came out of 2010. It's old and outdated. But this also creates problems. I tried to make a small change (by changing the XMP profile on the RAM), and the Windows got severely corrupted. It seems like the main drive got corrupted because even the recovery files couldn't function properly. After researching, it appears that this issue is related to the motherboard and the way it communicates information about changes to the rest of the system. It's worth noting that this problem only occurs in Windows 11, so be cautious for now!
    Other than that, I recommend it to someone who doesn't frequently make changes to their system. It's easy and compatible without any issues.

    Translated from Greek ·
    • Number of ports
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
    • Number of BIOS functions
    • Reliability
    Did you find this review helpful?
  • 5
    myst77

    The motherboard like B650 ATX is the most affordable choice and it has everything. You can find M2 gen5, good VRM

    Translated from Greek ·
    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Temperature
    • Easy installation in the case
    Did you find this review helpful?
  • 4
    3 out of 4 members found this review helpful
    Zoomor

    Verified purchase

    The reboot of the BIOS takes a little longer.

    UPDATE
    After the BIOS Update to 1.28, it's smooth sailing!

    Translated from Greek ·
    • Number of ports
    • Reliability
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
    • Number of BIOS functions
    • Value for money
    Did you find this review helpful?
  • 4
    CostaD_Drlos

    Verified purchase

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • Konstantinos_Stampoulis32
    3
    Konstantinos_Stampoulis32

    Typically good, but the ethernet would disappear in one out of three startups or wake ups. Regardless of the operating system, it was tested on Windows and Linux with the same problem. In the end, I installed a pci ethernet and found peace of mind.

    Translated from Greek ·
    0
  • eren_yega
    4
    eren_yega

    It's fine, just sometimes it takes a while to boot, maybe due to RAM compatibility but I'm not sure

    Translated from Greek ·
    0
  • Dimitrios_MacedoniaGR
    4
    Dimitrios_MacedoniaGR

    I don't like the BIOS environment, it's a bit confusing functionally, and the graphical interface compared to MSI and Gigabyte is inferior. Aside from that, there are no issues with the 7800X3D, and updates are frequent.

    Translated from Greek ·
    0
  • apostkarat
    4
    apostkarat

    The motherboard is solid. It has its problems, but for the price, I think they are justified.
    Let me start by saying that I am impressed by the number of ports on the rear IO and the possibilities for future upgradability. Then, there is plenty of space for components, meaning that the top PCIe slot can fit a 3-slot card and leave room for the bottom PCIe slot to be used as well. Furthermore, there won't be any issues with poorly printed parts, and both the RAM and CPU fit properly without any grinding, which is common in some budget solutions. Additionally, it is lightning-fast, so it supports RGB through the BIOS, which is definitely a positive aspect for those interested.
    However, on the negative side, the BIOS feels like it came out of 2010. It's old and outdated. But this also creates problems. I tried to make a small change (by changing the XMP profile on the RAM), and the Windows got severely corrupted. It seems like the main drive got corrupted because even the recovery files couldn't function properly. After researching, it appears that this issue is related to the motherboard and the way it communicates information about changes to the rest of the system. It's worth noting that this problem only occurs in Windows 11, so be cautious for now!
    Other than that, I recommend it to someone who doesn't frequently make changes to their system. It's easy and compatible without any issues.

    Translated from Greek ·
    16
  • 5
    myst77

    The motherboard like B650 ATX is the most affordable choice and it has everything. You can find M2 gen5, good VRM

    Translated from Greek ·
    0
  • See all
