Product Details

Size

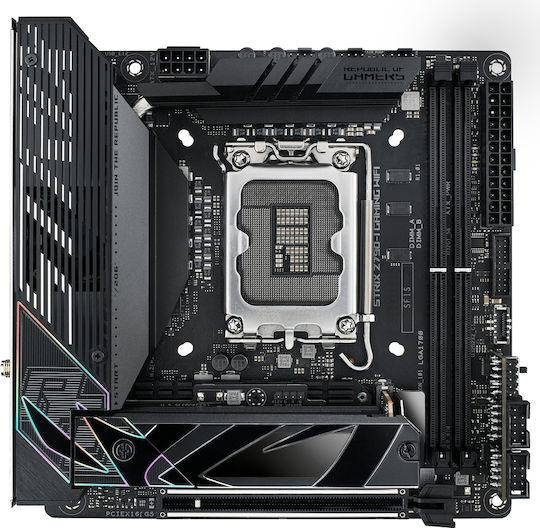

Mini ITX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Mini ITX

Very small, ideal for compact PCs, limited expansion capabilities.

Type

Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors

Intel

Models

Celeron Dual Core, Core i3, Core i5, Core i7, Core i9, Pentium Dual Core

Supported CPU Generation

Alder Lake, Raptor Lake

Socket

1700

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model

Intel Z790

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type

DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.

Quantity

2 DIMM Slots

Memory Speeds

4800, 5000, 5200, 5400, 5600, 5800OC, 6000OC, 6200OC, 6400OC, 6600OC, 6800OC, 7000OC, 7200OC, 7400OC, 7600OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.

Memory Channels

Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 5.0

1 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.

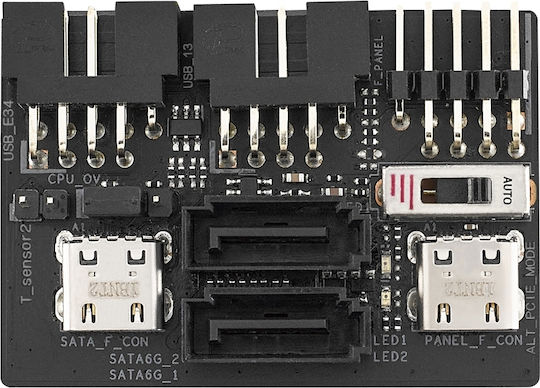

SATA III 6Gb/s

2 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.

M.2 Type

2 SATA III Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.

M.2 Slots

0

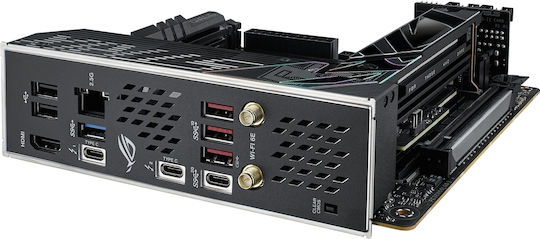

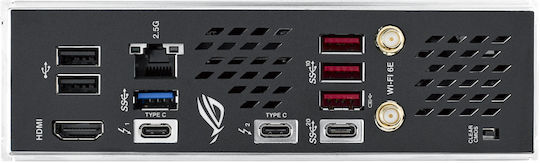

External Connectors

Rear USB-A outputs

2 USB 2.0 Ports, 3 USB 3.1 Ports

Rear USB-C outputs

3 USB 3.2 Ports

Ethernet (LAN)

1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.

Screen Connections

HDMI

Specifications

RGB Lighting

No

Wi-Fi/Bluetooth

Yes

Wi-Fi Generation

Wi-Fi 6E

Extra

Clear CMOS button

Extra

Clear CMOS button

Button for clearing the CMOS memory of the motherboard. Advanced function for experienced users that can also be achieved by simply removing and reinserting the motherboard battery. Useful function if something goes wrong during the overclocking process or BIOS settings for a reset to the original state.

Sound

Sound Card Channels

7.1

Top Specs

Memory

2x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
