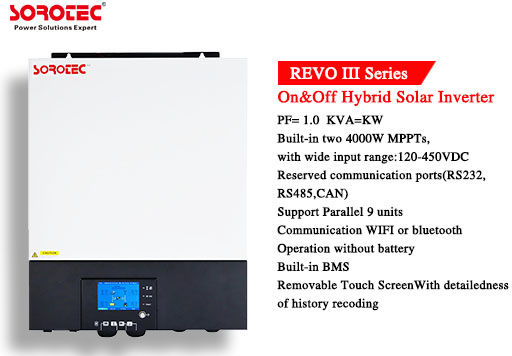

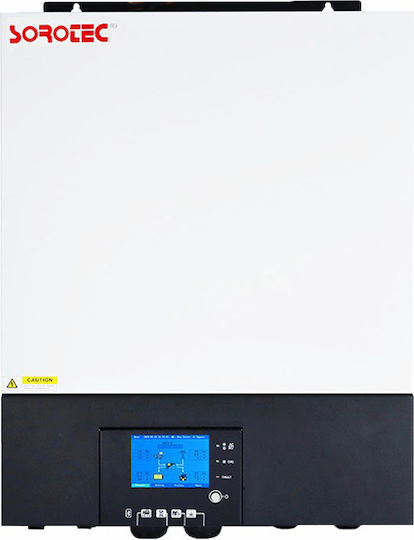

The Sorotec REVO III inverter converts DC power to pure sine wave AC power, with a rated output of 8,000 W. It features two MPPT solar charge controllers rated at 4,000 W each, with an operating range of 120–450 VDC and a maximum PV array open-circuit voltage of 500 VDC. With the appropriate setting, the photovoltaic system and auxiliary power supply can simultaneously power the load.

The detachable control unit features a touchscreen and RS232, RS485 and CAN communication ports. It records energy production, load, history and faults, and supports Peak-Valley charging and parallel operation of up to 6 units.

• Type: Pure sine wave
• Rated power: 8,000 W
• Rated input voltage: 230 V
• Power supply: Three-phase
• DC voltage: 48 VDC
• AC input voltage range: 170–280 VAC or 90–280 VAC
• Rated output voltage: 220/230/240 VAC
• Output type: Single-phase
• Frequency range: 50/60 Hz
• Solar charge controllers: 2 MPPT, 4,000 W each
• MPPT operating range: 120–450 VDC
• Maximum PV array open-circuit voltage: 500 VDC
• Maximum solar charging current: 120 A
• Maximum AC charging current: 120 A
• Maximum DC/AC conversion efficiency: Up to 93.5%
• Output power factor: PF=1.0
• Parallel operation: Up to 6 units
• Communication ports: RS232, RS485, CAN
