Proven Reliability The complete circuit along with the local transformer has proven its reliability over many years. The inverters are protected from short circuits and overheating, either due to overload or high ambient temperature.

High Starting Power Essential for starting loads such as power converters for LED lamps, halogen lamps, or power tools.

ECO Mode When in ECO mode, the inverter will switch to standby when the load drops below a preset value (minimum load: 15 W). Once in standby, the inverter will turn on for a short period (adjustable, default: every 2.5 seconds). If the load exceeds a preset level, the inverter will remain on.

Photovoltaic Charging Mechanism The photovoltaic charger ensures that the batteries are charged from the energy collected by your photovoltaic panels.

Remote On/Off Switch The Phoenix Inverter Control VE.Direct Remote panel (not included) can be used to remotely turn the inverter on or off. Alternatively, a remote on/off switch can be connected to a bipolar socket or between the battery and the left contact of the bipolar socket.

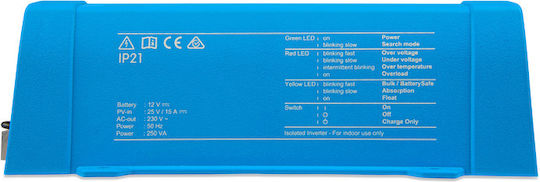

LED Diagnosis Please refer to the manual for description.

Bluetooth The parameters of the inverter and the photovoltaic charger can be read, monitored, and adjusted via Bluetooth using the VictronConnect app.

VE.Direct Communication Port The VE.Direct port can be used to connect to a GX device, GlobalLink 520 for monitoring via the VRM portal, or to a computer for monitoring or adjustment via the VictronConnect app.

• Classification via the VictronConnect app or GX device:
• Inverter input and output voltage and % load
• Solar power, voltage, and current
• Operational status and alarms
• Full parameterization via the VictronConnect app:
• Battery low voltage alarm activation and reset levels
• Battery low voltage cut-off and restart levels
• Dynamic cut-off: cut-off level dependent on load
• Output voltage 210 – 245 V and Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO sense level
• Battery charging current, algorithm, and voltages
• Battery charging temperature compensation or low-temperature cut-off level

For transferring the load to another AC source: the automatic transfer switch. For our low-power inverters, we recommend the Filax Automatic Transfer Switch. The Filax has an extremely short switching time (less than 20 milliseconds), so that computers and other electronic devices operate uninterrupted.

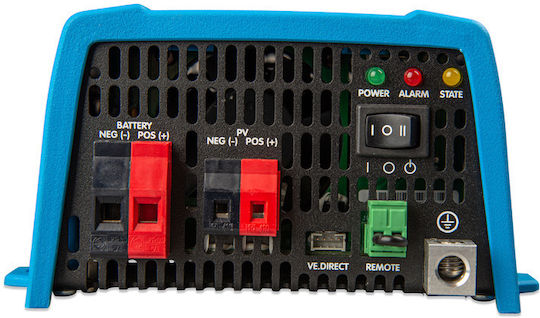

DC and PV Connections with Screw Terminals No special cable connectors or tools are required for installation.

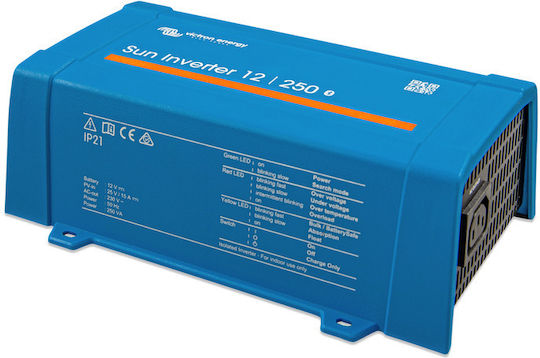

Available with IEC-320 Plug Male IEC-320 plug included.
