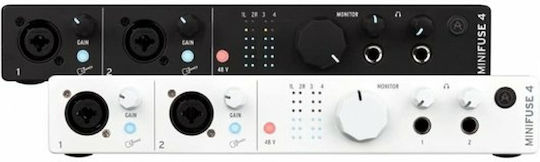

Minifuse 4 White

The Arturia MiniFuse 4 external audio interface connects to a computer via USB-C and offers 4 inputs and 4 outputs for recording and connecting Audio/MIDI devices. It features two XLR/6.3 mm combo...

The Arturia MiniFuse 4 external audio interface connects to a computer via USB-C and offers 4 inputs and 4 outputs for recording and connecting Audio/MIDI devices. It features two XLR/6.3 mm combo inputs and two additional 6.3 mm inputs, while the LoopBack function lets you record or stream additional audio from the computer alongside the inputs.

The 5-pin...

See full description See full description
208 90 €
Delivery by Thu, 12 Nov
14,00 €   shipping cost
Sent from Greece
From Odes 5.0 (10)
Greece
1 piece
See DJ & Studio Equipment on the page of Odes

Learn more about invoicing

Description

Description

The Arturia MiniFuse 4 external audio interface connects to a computer via USB-C and offers 4 inputs and 4 outputs for recording and connecting Audio/MIDI devices. It features two XLR/6.3 mm combo inputs and two additional 6.3 mm inputs, while the LoopBack function lets you record or stream additional audio from the computer alongside the inputs.

The 5-pin DIN MIDI connections support sending, receiving, and synchronizing MIDI information. The interface features 48 V phantom power, a 6.3 mm headphone output, and two USB-A ports for connecting devices such as MIDI controllers, with power output of up to 250 mA per port. The housing is made of aluminum, and the controls light up according to the input, turning red when the signal is too high.

  • Type: External audio interface
  • Color: White
  • Computer connectivity: USB-C
  • Inputs: 2 XLR/6.3 mm combo inputs and 2 6.3 mm inputs
  • Outputs: 2 6.3 mm TRS outputs for studio monitors or speakers
  • Headphone output: 1 6.3 mm jack
  • MIDI: 5-pin DIN input and output
  • Phantom power: 48 V
  • LoopBack: Recording or streaming additional audio from the computer
  • USB-A ports: 2, with power output of up to 250 mA per port
  • Line/instrument switch: Switches between line and instrument levels
  • Mix control: Combines the input signal with the signal from the computer or connected device
  • Direct mono function: Sums the inputs into a mono signal
  • Frequency response: 20 Hz–20 kHz
  • Sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
  • Dynamic range: 110 dB typical, A-weighted
  • Housing: Aluminum
  • Dimensions: 250 × 85 × 43 mm
  • Weight: 0.57 kg
  • Software compatibility: Windows
  • Included software: Ableton Live Lite, Analog Lab Intro, 4 x Arturia FX, Auto-Tune with a three-month subscription, GUITAR RIG LE, and Splice with a three-month subscription

Manufacturer

See full description

Specifications

Specifications

Connectivity

PC Connectivity
USB

Dimensions

Card Type
External
Phantom Power
Yes
MIDI
Yes
Loopback
Yes
Auto Gain
-
Clip Safe
-
DSP
-
Word Clock
-
Colour
White

Audio Ports

XLR Input
1
Headphones
Yes
6.3mm Input
2
3.5mm
No
RCA
No

Compatibility

Compatible Software
Windows

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (1)

Reviews

  1. 1
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • xarisal

    Verified purchase

    Good sound quality on the inputs with plenty of gain, 4 outputs, midi in and out, 2 headphone outputs, nice design. Honest for its price, I recommend it.

    Translated from Greek ·
    Did you find this review helpful?
  • Good sound quality on the inputs with plenty of gain, 4 outputs, midi in and out, 2 headphone outputs, nice design. Honest for its price, I recommend it.
