LED Strips

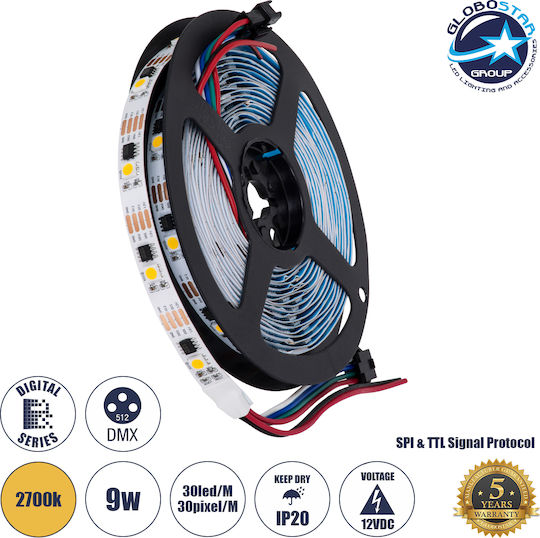

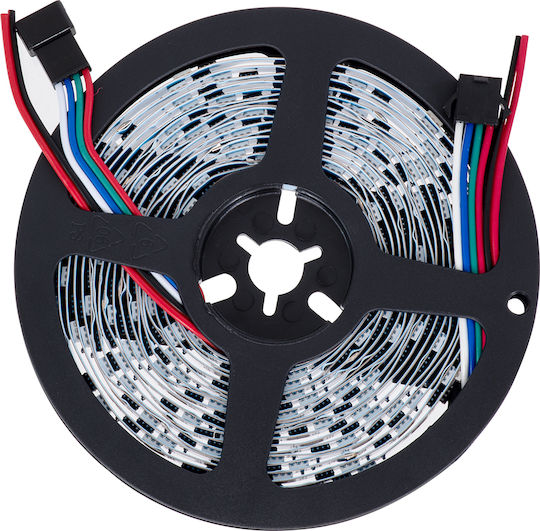

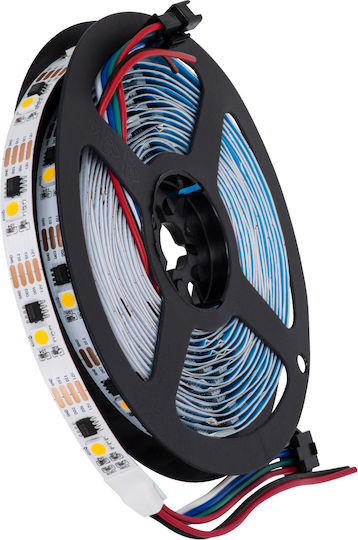

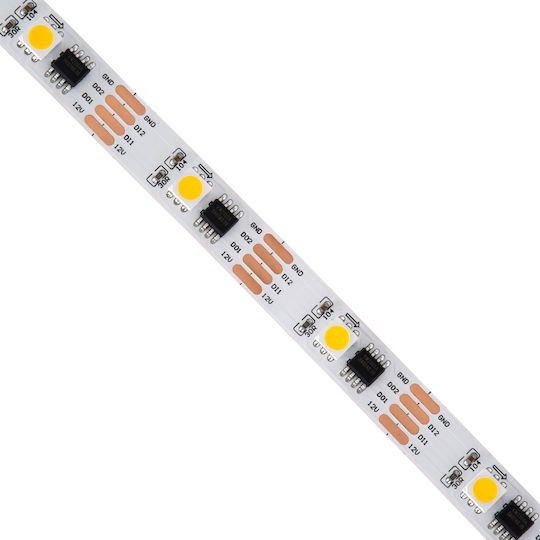

GloboStar LED Strip 12V Warm White Light 5m Type SMD5050 Code: 90598

TECHNICAL DATA

  • Brand: GLOBOSTAR
  • Series: DIGITAL LIGHTING
  • Product Identification Code: 90598
  • Category/Product Type: LED Digital Pixel Strips
  • Material: PCB Double Layer Copper Coating / 3 Ounces
  • Body...

TECHNICAL DATA

  • Brand: GLOBOSTAR
  • Series: DIGITAL LIGHTING
  • Product Identification Code: 90598
  • Category/Product Type: LED Digital Pixel Strips
  • Material: PCB Double Layer Copper Coating / 3 Ounces
  • Body Color: White
  • Power Consumption: 9 W / M
  • Equivalent: 75 W
  • Energy Saving: >80%
  • Nominal Voltage: DC 12V
  • LED Type: EPISTAR SMD 5050
  • LED per Meter: 30 LED / m
  • Pixels...
See full description See full description
  • Connectivity IR
  • See all

Description

Description

TECHNICAL DATA

  • Brand: GLOBOSTAR
  • Series: DIGITAL LIGHTING
  • Product Identification Code: 90598
  • Category/Product Type: LED Digital Pixel Strips
  • Material: PCB Double Layer Copper Coating / 3 Ounces
  • Body Color: White
  • Power Consumption: 9 W / M
  • Equivalent: 75 W
  • Energy Saving: >80%
  • Nominal Voltage: DC 12V
  • LED Type: EPISTAR SMD 5050
  • LED per Meter: 30 LED / m
  • Pixels per Meter: 30 PIXEL / m
  • Addressable: Yes
  • Communication Protocol: SPI/TTL
  • Driver Chip Type: TM1908
  • Useful Luminous Flux: 810 lm/M
  • Luminous Flux Efficiency: 90 lm/W
  • Energy Efficiency Class: G
  • Color Temperature: 2700 K
  • Lighting Color: Warm White
  • Color Rendering Index Ra: > 80
  • Color Uniformity in McAdam Ellipse Steps: ≤ 6 SDCM
  • Luminous Flux Maintenance Factor: 0.90
  • Power Factor (cos φ1): 0.85
  • Flicker Measurement: 0.02 Pst LM Flicker Free
  • Stroboscopic Effect Measurement: 0.001 SVM
  • Beam Angle: 120° Wide Cone
  • Operating Temperature Range: -10…+50 °C
  • Protection Rating: IP20
  • Dimmable: Yes
  • Nominal Lifespan: 30000 hours
  • Number of Switching Cycles: 50000 On / Off Cycles
  • Certificates & Standards: CE EMC Directive 2014/30/EU, CE LVD Directive 2014/35/EU, RoHS 2 Directive 2011/65/EU
  • Mercury Content: 0.0 mg
  • UV / IR: 0.0 mg
  • 100% Start Time: -
  • Important Note: The product is a component for Special LED Lighting Projects and cannot operate independently. It should be installed by a professional electronic/electrician.

DIMENSIONS & WEIGHT

  • Product Dimensions: L5m x W10mm x H2mm
  • Product Weight: 100g
  • Packaging Type: GloboStar® Label
  • Quantity per Package: 5 Meters in 1 Roll
  • Quantity per Master Package: 20 Pcs.
  • Packaging Dimensions: L18.5 x W16 x H2cm
  • Product Weight with Packaging: 108g
  • Master Packaging Dimensions: L25 x W25 x H20cm
  • Net Weight of Master Packaging: 2000g
  • Volumetric Weight of Master Packaging: 2500g
  • Shipping Method: By Any Means (Courier or Transport)

Manufacturer

See full description

Specifications

Specifications

Product Number
90598

Dimensions

Length
5 m
Power Source
12V
Light Colour
Warm White
White Temperature
2700 K
Protection Certification
IP20
USB
No

Additional Features

LED type
SMD5050
LED Density
30 LED/m
Power
9 W/m
Connectivity
IR
TV
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

TECHNICAL DATA

  • Brand: GLOBOSTAR
  • Series: DIGITAL LIGHTING
  • Product Identification Code: 90598
  • Category/Product Type: LED Digital Pixel Strips
  • Material: PCB Double Layer Copper Coating / 3 Ounces
  • Body Color: White
  • Power Consumption: 9 W / M
  • Equivalent: 75 W
  • Energy Saving: >80%
  • Nominal Voltage: DC 12V
  • LED Type: EPISTAR SMD 5050
  • LED per Meter: 30 LED / m
  • Pixels per Meter: 30 PIXEL / m
  • Addressable: Yes
  • Communication Protocol: SPI/TTL
  • Driver Chip Type: TM1908
  • Useful Luminous Flux: 810 lm/M
  • Luminous Flux Efficiency: 90 lm/W
  • Energy Efficiency Class: G
  • Color Temperature: 2700 K
  • Lighting Color: Warm White
  • Color Rendering Index Ra: > 80
  • Color Uniformity in McAdam Ellipse Steps: ≤ 6 SDCM
  • Luminous Flux Maintenance Factor: 0.90
  • Power Factor (cos φ1): 0.85
  • Flicker Measurement: 0.02 Pst LM Flicker Free
  • Stroboscopic Effect Measurement: 0.001 SVM
  • Beam Angle: 120° Wide Cone
  • Operating Temperature Range: -10…+50 °C
  • Protection Rating: IP20
  • Dimmable: Yes
  • Nominal Lifespan: 30000 hours
  • Number of Switching Cycles: 50000 On / Off Cycles
  • Certificates & Standards: CE EMC Directive 2014/30/EU, CE LVD Directive 2014/35/EU, RoHS 2 Directive 2011/65/EU
  • Mercury Content: 0.0 mg
  • UV / IR: 0.0 mg
  • 100% Start Time: -
  • Important Note: The product is a component for Special LED Lighting Projects and cannot operate independently. It should be installed by a professional electronic/electrician.

DIMENSIONS & WEIGHT

  • Product Dimensions: L5m x W10mm x H2mm
  • Product Weight: 100g
  • Packaging Type: GloboStar® Label
  • Quantity per Package: 5 Meters in 1 Roll
  • Quantity per Master Package: 20 Pcs.
  • Packaging Dimensions: L18.5 x W16 x H2cm
  • Product Weight with Packaging: 108g
  • Master Packaging Dimensions: L25 x W25 x H20cm
  • Net Weight of Master Packaging: 2000g
  • Volumetric Weight of Master Packaging: 2500g
  • Shipping Method: By Any Means (Courier or Transport)

Manufacturer

Product Number
90598

Dimensions

Length
5 m
Power Source
12V
Light Colour
Warm White
White Temperature
2700 K
Protection Certification
IP20
USB
No

Additional Features

LED type
SMD5050
LED Density
30 LED/m
Power
9 W/m
Connectivity
IR
TV
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
