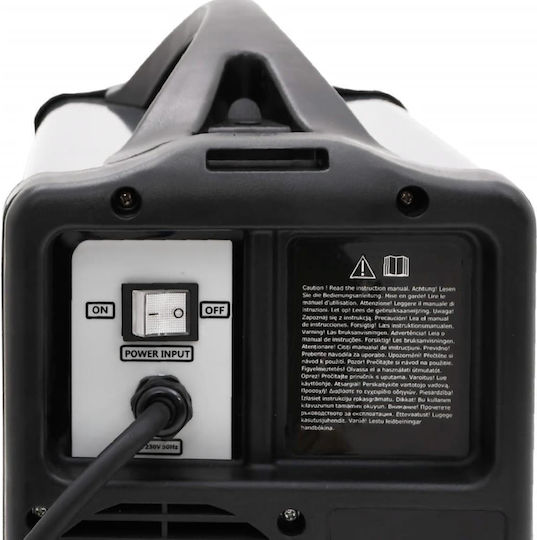

vidaXL Welding Machine Inverter MIG / TIG / MMA with Maximum Welding Current 200A and Duty Cycle 15%
Welding Machines

vidaXL Welding Machine Inverter MIG / TIG / MMA with Maximum Welding Current 200A and Duty Cycle 15%

This welding machine is an excellent choice for both beginners and professional welders who want to perform any maintenance and repair work.

Multifunctional welding machine:

  • Functions: MMA, MIG, lift...

This welding machine is an excellent choice for both beginners and professional welders who want to perform any maintenance and repair work.

Multifunctional welding machine:

  • Functions: MMA, MIG, lift TIG.
  • Synergy function for automatic welding parameter adjustment.

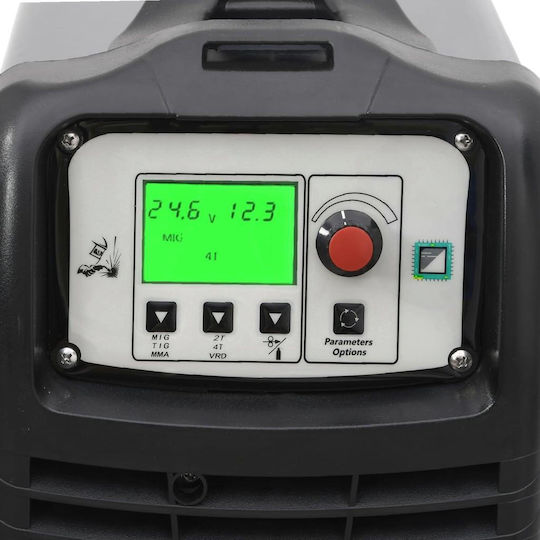

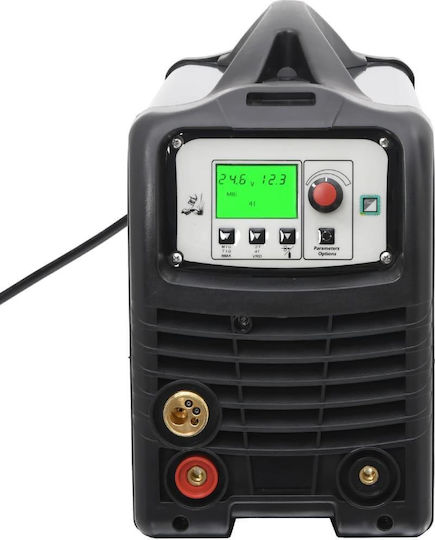

  • Digital display for easy and precise operation.
  • Suitable for welding steel and stainless...
See full description See full description

  • Welding Current

    200

    Suitable for professional use on thick metals, such as steel or cast iron constructions.

  • Duty Cycle

    The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

    2.

    For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.

  • Power Supply Voltage

    230

    It is the supply voltage that the machine requires from the electrical grid.
  • See all
340 70 €
Delivery Fri, 14 Aug - Thu, 20 Aug
41,00 €   shipping cost
Sent from Greece
From myhomiq
Greece
20+ pieces
See Tools on the page of myhomiq
Review the product
Product report

Description

Description

This welding machine is an excellent choice for both beginners and professional welders who want to perform any maintenance and repair work.

Multifunctional welding machine:

  • Functions: MMA, MIG, lift TIG.
  • Synergy function for automatic welding parameter adjustment.
  • Digital display for easy and precise operation.
  • Suitable for welding steel and stainless steel.
  • Applications: welding doors, windows, fences, car doors, and pipes.

Specifications:

  • Dimensions: 22.5 x 52 x 38 cm (W x D x H).
  • Input voltage: 230 V.
  • Frequency: 50Hz.
  • Enclosure protection rating: IP21S.
  • 3-in-1 function: MIG, MMA, lift TIG.
  • Power cable length: 2 m.

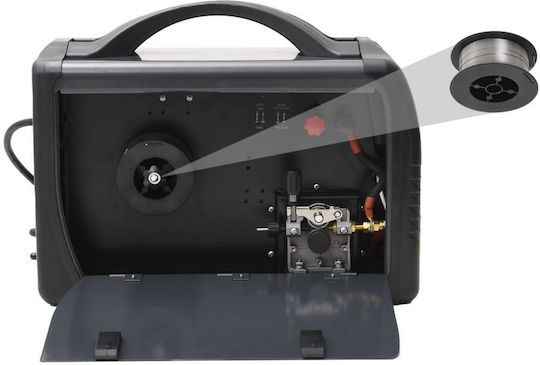

  • Wire diameter: 0.6 / 0.8 / 1 mm.
  • Wire feed speed: 2-12.5 / 2-12.5 / 2-8.1 m/min.
  • Weight: 12.1 kg.
  • Effective supply current: MIG / MAG: Max. 13.9 A, MMA: Max. 14.3 A, TIG: Max. 13.2 A.
  • Output current: MIG / MAG: DC 40~200 A, MMA: DC 20~160 A, TIG: DC 20~200 A.
  • Power source efficiency: MIG / MAG / MMA: 81%, TIG: 78%.
  • Power consumption: MIG / MAG / TIG: 10 W, MMA: 55 W.

Included in delivery:

  • 1 x Welding machine.
  • 1 x Wire brush.
  • 4 x Nozzles (0.6/0.8/0.9/1 mm).
  • 1 x Flux-cored wire (0.9 mm).

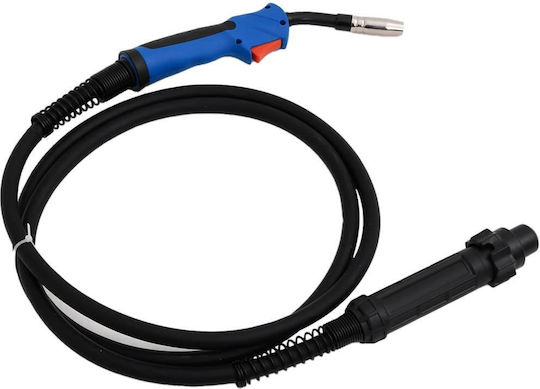

  • 1 x Mig torch with cable (3 m with connector).

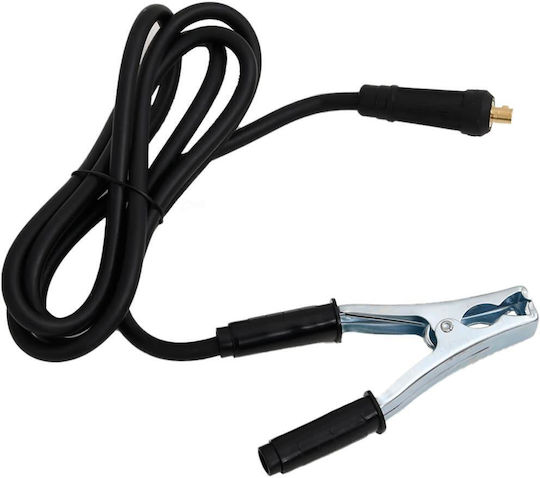

  • 1 x Ground clamp with cable (2 m).

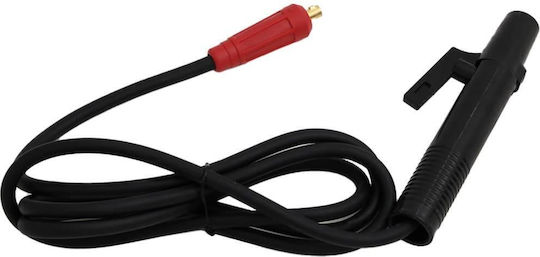

  • 1 x Electrode holder with cable (2 m).
  • 1 x Wrench.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
MIG, TIG, MMA

Type

MIG

The easiest welding method even for a beginner. 2. If the wire to be used does not have a special coating (flux), it should be connected to an external gas cylinder (e.g. argon, CO2).

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.
Welding Current (max)
200 A

Welding Current (max): 200


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
15 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
230 V

Supply Voltage: 230


It is the supply voltage that the machine requires from the electrical grid.
Weight
12100 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
No
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
No
Anti Stick
No
Arc Force
No
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
