- Supports 12th/13th generation Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket
- Supports DDR4 memory, Dual Channel DDR4 5333+MHz (OC)
- Enhanced power design: 12+1 Duet Rail power system with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- High-quality thermal solution: Extended heatsink, MOSFET thermal pads rated at 7W/mK, additional choke thermal pads, and M.2 Shield Frozr are designed for high-performance systems and an unstoppable gaming experience
- High-quality PCB: 6-layer PCB made of 2oz thick copper and server-grade material
- Lightning-fast gaming experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: With the support of the Intel USB 3.2 Gen2 controller, Turbo USB ensures uninterrupted connection with greater stability and faster USB speeds
- 2.5G LAN with Wi-Fi 6E solution: Upgraded network solution for professional and multimedia use. Provides secure, stable, and fast network connection
- AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Product Details
- Size
- ATX
- Type
- Desktop
Processor
- Supported Processors
- Intel
- Models
- Celeron Dual Core, Core i3, Core i5, Core i7, Core i9, Pentium Dual Core
- Supported CPU Generation
- Alder Lake, Raptor Lake
- Socket
- 1700
Chipset
- Model
- Intel B760
Memory
- Memory type
- DDR4
- Quantity
- 4 DIMM Slots
- Memory Speeds
- 2133, 2400, 2666, 2933, 3200, 3300OC, 3400OC, 3466OC, 3600OC, 3733OC, 3866OC, 4000OC, 4266OC, 4466OC, 4600OC, 4866OC
- Memory Channels
- Dual Channel
Internal Connectors
- PCI Express x16 4.0
- 2 Slot
- SATA III 6Gb/s
- 4 Port
- M.2 Type
- 2 PCIe 4.0 Ports
- M.2 Slots
- 0
External Connectors
- Rear USB-A outputs
- 2 USB 3.2 Ports, 4 USB 2.0 Ports
- Rear USB-C outputs
- 1 USB 3.2 Port
- Ethernet (LAN)
- 1
- Screen Connections
- DisplayPort, HDMI
Specifications
- RGB Lighting
- No
- WiFi/Bluetooth
- Yes
- Extra
- RGB Header
Sound
- Sound Card Channels
- 7.1
- Additional Audio Connections
- Optical S/PDIF
Top Specs
- Memory
- 4x DDR4
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
Description

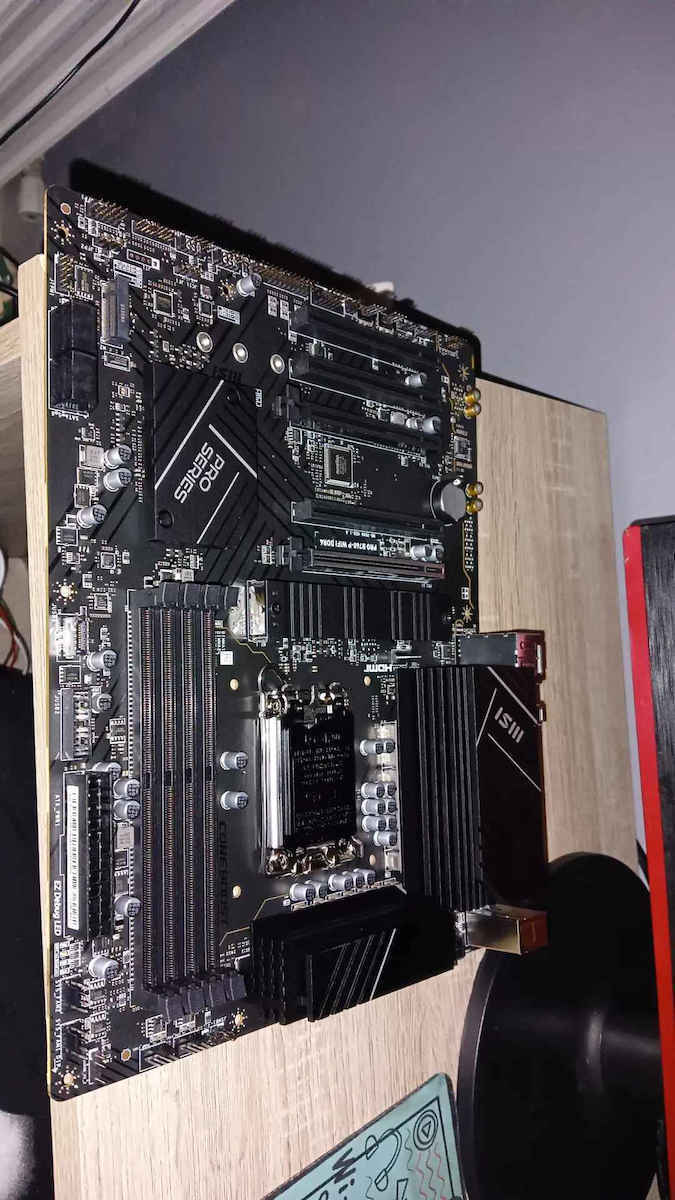

The MSI Pro B760-P WIFI DDR4 motherboard is mainly aimed at users who are looking for an affordable solution to build a stable computer for general use or slightly demanding tasks such as graphic editing or multimedia playback.
The board features the LGA 1700 socket and is compatible with 12th and 13th generation Intel Core processors, supports DDR4 memory with a capacity of up to 128GB, and offers expansion options with PCIe 4.0 and M.2 slots.
- Supports 12th/13th generation Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket
- Supports DDR4 memory, Dual Channel DDR4 5333+MHz (OC)
- Enhanced power design: 12+1 Duet Rail power system with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- High-quality thermal solution: Extended heatsink, MOSFET thermal pads rated at 7W/mK, additional choke thermal pads, and M.2 Shield Frozr are designed for high-performance systems and an unstoppable gaming experience
- High-quality PCB: 6-layer PCB made of 2oz thick copper and server-grade material
- Lightning-fast gaming experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: With the support of the Intel USB 3.2 Gen2 controller, Turbo USB ensures uninterrupted connection with greater stability and faster USB speeds
- 2.5G LAN with Wi-Fi 6E solution: Upgraded network solution for professional and multimedia use. Provides secure, stable, and fast network connection
- AUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Cooling
Frozr AI Cooling
Detects the temperatures of the processor and graphics card and automatically adjusts the speed of the cooling fans through the MSI AI Engine.
Ready for water cooling
Designed to support the most popular All-In-One water coolers and custom water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amps, giving you full control over the water pump speed. A clearly marked "protection zone" allows for easy and safe installation and perfect fit.
EZ M.2 Clip
The innovative MSI EZ M.2 clip helps you install an M.2 SSD quickly and effortlessly.
EZ Debug LED
The built-in LEDs on the motherboard indicate the source of any problems in the computer.
Lightning Gen 4 PCI-E
- Doubling compared to the previous generation, the bandwidth of an x16 interface can reach 64GB/s.
- Secures to the motherboard with additional solder points and supports the weight of heavy graphics cards.
Storage
MSI's PRO series motherboards support all the latest storage standards, allowing users to connect any ultra-fast storage device. Start games faster, load faster, and gain a real advantage.
Lightning USB 3.2 Gen 2 10G
DDR4 Memory
With MSI Memory Boost technology and top-notch layout design, MSI's PRO series motherboards are ready to deliver great memory performance.
MSI Center
The brand new MSI Center unifies a suite of MSI software utilities into a single central application. Take control of the motherboard's advanced features and unleash unlimited possibilities.
- Mystic Light
- True Color
- User Scenario
- Hardware Monitoring
- Profile Setting
- Fan Center
- System Diagnosis
Network Connections
MSI's top network solution provides incredible data transfer speed for demanding users.
- Wi-Fi 6E
- Bluetooth 5.3
- 2.5G LAN
Unboxing
Rear connections
- 1. Keyboard / Mouse
- 2. DisplayPort
- 3. 2.5G LAN
- 4. USB 2.0
- 5. Wi-Fi / Bluetooth
- 6. Audio Connectors
- 7. USB 2.0
- 8. HDMI
- 9. USB 3.2 Gen 2 10Gbps (Type-A)
- 10. USB 3.2 Gen 2 10Gbps (Type-C)
- 11. S/PDIF-OUT
Internal Connections
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x Pump Fan
- 5x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Printer Port (JLPT)
- 1x Com Port (JCOM)
- 1x TBT connector (JTBT, supports RTD3)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 2x USB 3.2 Gen1 Type A ports
- 1x USB 3.2 Gen1 Type C ports
Package contents
