The Dark Power 13 is certified with 80 PLUS Titanium and has an energy efficiency of up to 95.2% for saving money. This provides many benefits for your high-end system, including lower power consumption and an overall cooler and quieter operation. The standby power consumption is below 0.1 watts.
Description
Specifications
80 PLUS TITANIUM
The Dark Power 13 is certified with 80 PLUS Titanium and has an energy efficiency of up to 95.2% for saving money. This provides many benefits for your high-end system, including lower power consumption and an overall cooler and quieter operation. The standby power consumption is below 0.1 watts.
ATX 3.0

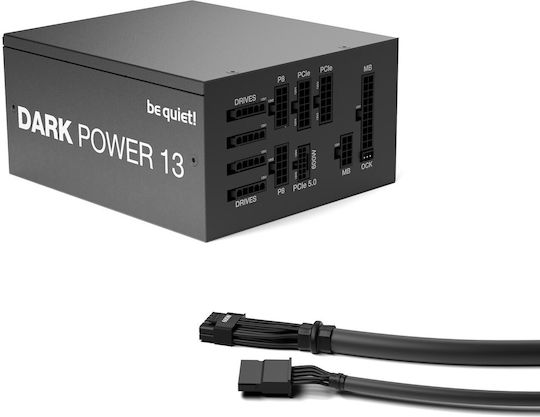

The Dark Power 13 1000W is an ATX 3.0 power supply and features both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, as well as PCIe 6+2 pin connectors to support current-generation GPUs. This makes the power supply extremely versatile and the ideal choice for today's high-tech systems and future ones.
Japanese Capacitors 105°
Manufactured with 100% Japanese industrial-grade electrolytic capacitors, rated at 105°C, for unwavering power and reliability.
Fully Modular

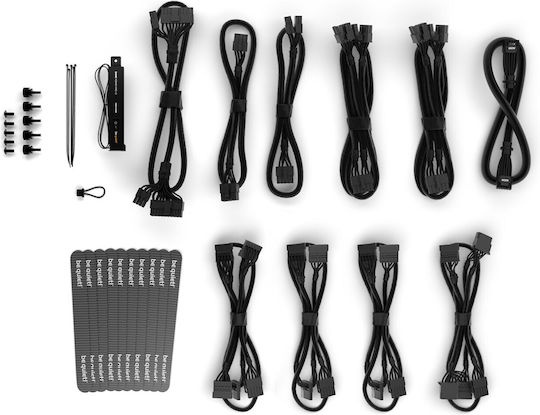

The modular cables with a sheath length of up to 120 cm simplify the installation of components and reduce annoying clutter. The result is increased airflow and improved cooling even in the largest PC cases.
LLC Topology

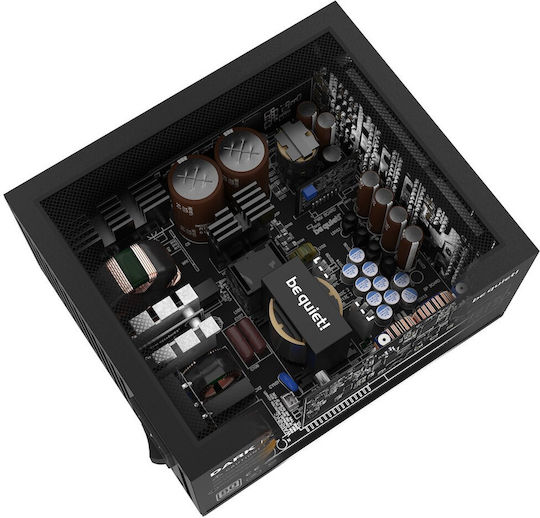

With active rectifier and full bridge LLC technology, the Dark Power 13 offers some of the most advanced technologies available, resulting in higher efficiency, better regulation, and lower ripple noise for an incomparably stable operation
Ready for Overclocking
With a dedicated button for full control over overclocking, manually switching between the default four 12V rail mode and the alternative single rail mass mode.
Performance Under Heavy Loads
The Dark Power 13 offers continuous power of 1000W with 4 independent 12V rails. Even if the graphics card demands excessive power for a short period: It easily handles power surges up to twice its rated power. This ensures reliable operation with the next generation of processors and graphics cards.

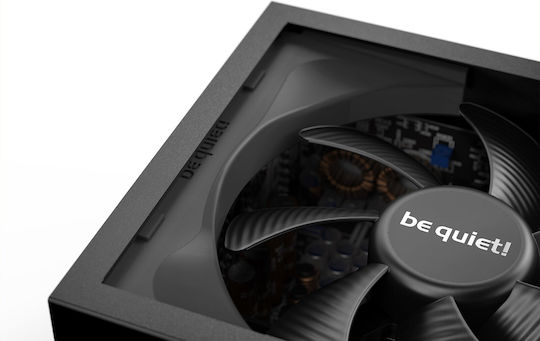

Silent Fan
The be quiet! Silent Wings fan allows for maximum airflow and nearly silent operation. This is due to the unique, airflow-optimized fan blade design along with an advanced fluid dynamic bearing. A 6-pole fan motor ultimately ensures fewer vibrations, extremely long lifespan, and minimal energy consumption.
At the same time, the cable-free design inside allows cool air to perfectly reach all components, which ultimately leads to a longer lifespan
Connections
- 1x ATX 20 + 4-pin motherboard power connector.
- 1x EPS/ATX12V 8 Pin (4+4) CPU power connector
- 4x PCIe 6+2 graphics card power connectors, to take advantage of modern GPUs in combination with your PC's capabilities
- 12x SATA power connectors for SSD or HDD hard drives
- 3x 4-pin Molex connectors for connecting additional peripherals
Loads
- Operating Voltage: 100-240V
Maximum Load:
- Line Current +3.3 V: 22A
- Line Current +5 V: 22A
- Line Current +12 V1: 25A
- Line Current +12 V2: 25A
- Line Current +12 V3: 30A
- Line Current +12 V4: 30A
- Line Current -12 V: 0.3A
- Line Current +5 Vsb: 3A
Protection Technologies
The Dark Power 13 protects your PC from over-power (OPP), over-voltage (OVP), under-voltage (UVP), over-current (OCP), over-temperature (OTP), and short-circuit (SCP).
Dimensions
- Power
- 750 W
- Size
- ATX
- Modularity
- Full Modular
- Certification
- 80 Plus Titanium
- Fan Dimension
- 135 mm
- Color
- Black
ATX Version
- ATX 3.1
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
