- Unmatched flexibility and uniform air distribution throughout the space
- Fresh air intake for a clean and healthy environment in the area
- Ability to connect an air outlet duct for air conditioning in another small space without an additional indoor unit
- Built-in condensate pump for greater installation flexibility
- Complete control of the air conditioner via Wi-Fi
Description
Specifications
The ultimate solution for professional spaces, offering performance and flexibility!
- Unmatched flexibility and uniform air distribution throughout the space
- Fresh air intake for a clean and healthy environment in the area
- Ability to connect an air outlet duct for air conditioning in another small space without an additional indoor unit
- Built-in condensate pump for greater installation flexibility
- Complete control of the air conditioner via Wi-Fi
Ergonomic design for unmatched flexibility and high performance!

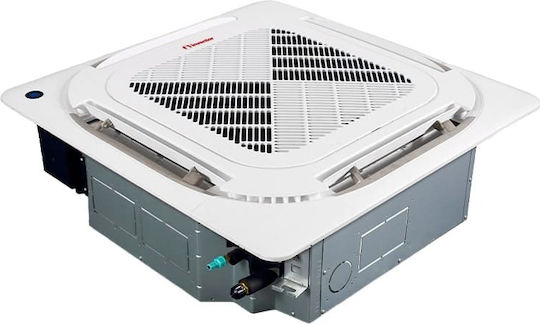

The new V7 ceiling cassette series impresses with its design and flexibility, meeting air conditioning needs in hotels, businesses, and residences. It features an air duct connection for additional rooms, independent louver movement for even air distribution, and the ability to connect fresh air for a clean environment. The condensate pump facilitates installation, while remote control via Wi-Fi offers complete autonomy.
Wi-Fi Ready
The advanced technology of the new Multi-Split & Semi-Central air conditioners by Inventor provides remote management capability and allows you to easily control your air conditioner from wherever you are. Install the Wi-Fi Smart Port, download the Invmate II app via Google Play & App Store on your Smartphone or Tablet, and create ideal conditions in every area of your space.
*The Wi-Fi Ready Cassette air conditioners require the existence of a Wi-Fi Smart Port Module as a prerequisite for remote management.
Independent Louver Movement
With Independent Louver Movement, you have the ability to choose the number of louvers to be used and enjoy the perfect temperature just the way you want it. Adjust the operation with one, two, three, or all louvers simultaneously via the wireless or wired controller according to the needs of your space.
*The wired controller is optional and is not included in the cassette package. **Applies to units V7CI-24WiFiR/U7RS-24, V7CI-36WiFiR/U7RS-36, V7CI-42WiFiR/U7RS-42, V7CI-50WiFiR/U7RT-50, V7CI-60WiFiR/U7RT-60.
Fresh Air Intake
Possibility of connecting a fresh air duct, for a clean and healthy environment.
Air Outlet Duct Connection Capability
With the special construction of the indoor unit, an additional air duct can supply air to another room. Suitable for air conditioning very small rooms.
Built-in Condensate Pump
The built-in condensate pump provides the ability to lift up to 750mm, thus meeting the needs of any installation. It applies to horizontal placement.
A+++ Energy Class
The technological superiority of the series guarantees excellent performance with the lowest operating cost. Take advantage of the highest energy class A+++ of Inventor air conditioners and create the perfect atmosphere just as you dream it. At the same time, save money while also taking care of the energy footprint by choosing an air conditioner with lower energy consumption.
Functions/Technologies
- Through the Hotel Menu service, cooling and heating can be programmed within specific operating limits. The air conditioner is locked, preventing the setting of extreme temperatures and significantly contributing to saving up to 70% of operating costs.
- The iClean function ensures better air quality in your space by removing accumulated dust, mold, and bacteria from the interior of the unit.
- Enjoy unique comfort in every part of the room. Air is expelled from 8 instead of 4 outlets and is effectively distributed to every corner of the space.
- The wide range of options provided by the pre-installed ON/OFF contact gives you the flexibility you need to manage your air conditioners, saving time and energy. Install a Door Switch or remote switches to easily and instantly activate or deactivate the units.
R32 Eco-friendly Refrigerant
The eco-friendly refrigerant R32 with 68% lower global warming potential, enhances the performance of your air conditioner even further while significantly contributing to the protection of the planet. It does not negatively affect the ozone layer, helps reduce the phenomenon of global warming by trapping smaller amounts of heat (GWP= 675), and can be easily reused and recycled.
Self-Diagnosis of Faults
In case of unusual behavior, the unit will automatically shut down to protect the system. After a while, a protection code will appear on the screen for immediate repair.
Product Details
- Type
- Cassette
- Performance (BTU)
- 24000 BTU
- Cooling Power
- 24000 BTU
- Heating Power
- 26000 BTU
Features & Functions
- WiFi
- No
- Electric Resistance
- No
- Refrigerant R32
- Yes
- Timer
- Yes
- Follow Me Function
- Yes
- Human Detection
- No
- Self-Diagnosis Function
- Yes

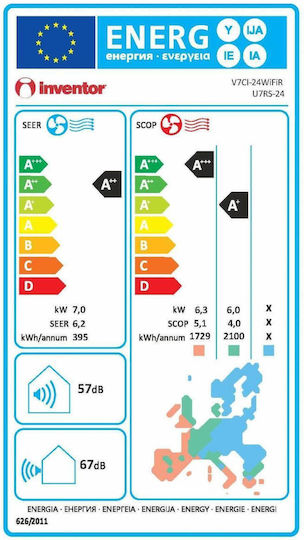

Energy Class
- Cooling
- A++
- Heating
- A+++
- SEER Cooling
- 7 W/W
- SCOP Heating
- 5.1 W/W
Dimensions of External Unit
- Outdoor Unit Length
- 845 mm
- Outdoor Unit Height
- 702 mm
- Depth of External Unit
- 363 mm
Noise Power
- Internal Unit
- 59 dB
- External Unit
- 64 dB
Dimensions
- Indoor Unit Length
- 840 mm
- Indoor Unit Height
- 840 mm
- Internal Unit Depth
- 250 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
