Biostar H610MHP Ver. 6.1 Motherboard Micro ATX with Intel 1700 Socket
Motherboards

Biostar H610MHP Ver. 6.1 Motherboard Micro ATX with Intel 1700 Socket

The H610MHP from Biostar is a reliable motherboard, ideal for use in both home PCs and business PCs. It is made from reliable components and equipped with all the modern technologies that offer...

The H610MHP from Biostar is a reliable motherboard, ideal for use in both home PCs and business PCs. It is made from reliable components and equipped with all the modern technologies that offer increased speeds and stable performance. It supports processors that are compatible with the socket s1700 and is based on Intel's H610 chipset.

  • Supports 12th/ 13th...
See full description See full description

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    Micro ATX

    Smaller than ATX, with fewer slots but sufficient for everyday use.

  • Usage

    Desktop

    Motherboards designed for use in desktop computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all
Review the product
Product report

Description

Description

The H610MHP from Biostar is a reliable motherboard, ideal for use in both home PCs and business PCs. It is made from reliable components and equipped with all the modern technologies that offer increased speeds and stable performance. It supports processors that are compatible with the socket s1700 and is based on Intel's H610 chipset.

  • Supports 12th/ 13th Generation Intel Core Processor
  • Intel H610 single chip architecture
  • Supports 2-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2933/ 3200 up to 64 GB Memory
  • Supports PCIe 4.0
  • Supports PCIe M.2 3.0 (32Gb/s)
  • Supports HDMI 4K2K
  • Supports USB 3.2 Gen1

Technical Specifications:

  • Chipset: Intel H610
  • CPU support: 12th/13th Generation Intel Core i9/i7/i5/i3 processors and Intel Pentium/Celeron processors in the LGA1700 package
  • Memory: 2x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
  • Integrated video: DX12, HDCP
  • Storage: 1x M.2 socket and 4x SATA III (6Gb/s) ports
  • LAN: Intel I219V, 10/100/1000 Mbps auto negotiation, Half / Full duplex capability
  • Audio codec: ALC897, 7.1 Channels, High Definition Audio
  • USB: 4x USB 3.2 (Gen1) ports, 8x USB 2.0 ports
  • Expansion slot: 1x PCIe 3.0 x1 Slot, 1x PCIe 4.0 x16 Slot
  • Dimension: Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L )
  • OS support: Supports Windows 10 (64bit) / 11(64bit)

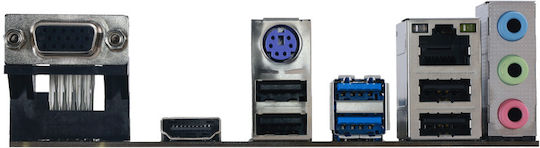

REAR I/O:

  • 1x PS/2 Keyboard/Mouse Port
  • 1x HDMI
  • 1x VGA Port
  • 2x USB 3.2 (Gen1) ports
  • 4x USB 2.0 ports
  • 1x LAN port
  • 3x Audio Jack

INTERNAL I/O:

  • 4x SATA III Connectors (6Gb/s)
  • 2x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
  • 1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
  • 1x 8-Pin Power Connector
  • 1x 24-Pin Power Connector
  • 1x CPU Fan Connector
  • 1x System Fan Connector
  • 1x Front Panel Header
  • 1x Front Audio Header
  • 1x Internal Stereo Speaker Header
  • 1x Clear CMOS Header
  • 1x COM Port Header
  • 1x TPM Header

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
Micro ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Micro ATX
Smaller than ATX, with fewer slots but sufficient for everyday use.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
Intel
Models
Celeron Dual Core, Core i3, Core i5, Core i7, Core i9, Pentium Quad Core
Supported CPU Generation
Alder Lake, Raptor Lake
Socket
1700

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
Intel H610

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR4

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR4

The most common type of memory, with timings starting from 2133Hz.
Quantity
2 DIMM Slots
Memory Speeds
1866, 2133, 2400, 2666, 2933, 3200

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 4.0
1 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 3.0 Port

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
2 USB 3.2 Ports, 4 USB 2.0 Ports
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
HDMI, VGA

Specifications

RGB Lighting
No
WiFi/Bluetooth
No

Sound

Sound Card Channels
7.1
Additional Audio Connections
-

Top Specs

Memory
2x DDR4

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Product Details

Size
Micro ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Micro ATX
Smaller than ATX, with fewer slots but sufficient for everyday use.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
Intel
Models
Celeron Dual Core, Core i3, Core i5, Core i7, Core i9, Pentium Quad Core
Supported CPU Generation
Alder Lake, Raptor Lake
Socket
1700

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
Intel H610

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR4

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR4

The most common type of memory, with timings starting from 2133Hz.
Quantity
2 DIMM Slots
Memory Speeds
1866, 2133, 2400, 2666, 2933, 3200

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 4.0
1 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 3.0 Port

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
2 USB 3.2 Ports, 4 USB 2.0 Ports
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
HDMI, VGA

Specifications

RGB Lighting
No
WiFi/Bluetooth
No

Sound

Sound Card Channels
7.1
Additional Audio Connections
-

Top Specs

Memory
2x DDR4

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Description

The H610MHP from Biostar is a reliable motherboard, ideal for use in both home PCs and business PCs. It is made from reliable components and equipped with all the modern technologies that offer increased speeds and stable performance. It supports processors that are compatible with the socket s1700 and is based on Intel's H610 chipset.

  • Supports 12th/ 13th Generation Intel Core Processor
  • Intel H610 single chip architecture
  • Supports 2-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2933/ 3200 up to 64 GB Memory
  • Supports PCIe 4.0
  • Supports PCIe M.2 3.0 (32Gb/s)
  • Supports HDMI 4K2K
  • Supports USB 3.2 Gen1

Technical Specifications:

  • Chipset: Intel H610
  • CPU support: 12th/13th Generation Intel Core i9/i7/i5/i3 processors and Intel Pentium/Celeron processors in the LGA1700 package
  • Memory: 2x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
  • Integrated video: DX12, HDCP
  • Storage: 1x M.2 socket and 4x SATA III (6Gb/s) ports
  • LAN: Intel I219V, 10/100/1000 Mbps auto negotiation, Half / Full duplex capability
  • Audio codec: ALC897, 7.1 Channels, High Definition Audio
  • USB: 4x USB 3.2 (Gen1) ports, 8x USB 2.0 ports
  • Expansion slot: 1x PCIe 3.0 x1 Slot, 1x PCIe 4.0 x16 Slot
  • Dimension: Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L )
  • OS support: Supports Windows 10 (64bit) / 11(64bit)

REAR I/O:

  • 1x PS/2 Keyboard/Mouse Port
  • 1x HDMI
  • 1x VGA Port
  • 2x USB 3.2 (Gen1) ports
  • 4x USB 2.0 ports
  • 1x LAN port
  • 3x Audio Jack

INTERNAL I/O:

  • 4x SATA III Connectors (6Gb/s)
  • 2x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
  • 1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
  • 1x 8-Pin Power Connector
  • 1x 24-Pin Power Connector
  • 1x CPU Fan Connector
  • 1x System Fan Connector
  • 1x Front Panel Header
  • 1x Front Audio Header
  • 1x Internal Stereo Speaker Header
  • 1x Clear CMOS Header
  • 1x COM Port Header
  • 1x TPM Header
