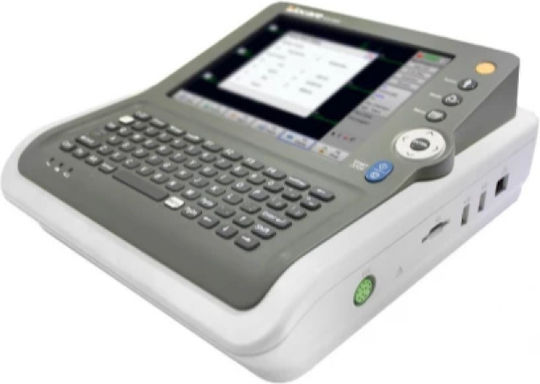

The iE 3 Biocare cardiograph features an 8-inch TFT color touchscreen with high resolution, providing immediate and clear display of the 12 leads. The thermal printer supports 112 mm paper with adjustable recording speeds and various types of printing channels. The digital ECG technology offers 24-bit analysis and 8000 samples/second for accurate results. It also includes automatic ECG diagnosis for adults and children, implantable pacemaker detection, and a full alphanumeric keyboard. The device provides easy connection to external devices via USB port and SD memory card and supports data transmission to a central station via LAN.

Features:

• 8” TFT touchscreen (1280 x 768)
• Simultaneous display of 12 leads
• Thermal printer with 112 mm paper and speed settings (5, 6.25, 10, 12.5, 25, 50 mm/s)
• Printing channels: 3×4, 3×4+1R, 3×4+3R, 6×2, 6×2+1R
• Digital ECG technology, 24-bit analysis and 8000 samples/second
• Frequency response 0.05 Hz ~ 250 Hz
• Automatic and manual sensitivity adjustment (1.25, 2.5, 5, 10, 20, 10/5, 20/10) mm/mV & Auto Gain
• Automatic ECG diagnosis for adults and children
• Implantable pacemaker detection
• Internal memory storage for 1500 ECG files
• Connection via USB port and LAN for data transmission to a central station

Accessories:

• 10-lead patient cable
• 4 clip-on electrodes (limbs)
• 6 suction cup chest electrodes
• Power cable
• AC/220V power adapter
• Rechargeable battery
• Grounding cable
• Printer paper
• Operation manual
• 2-year warranty
