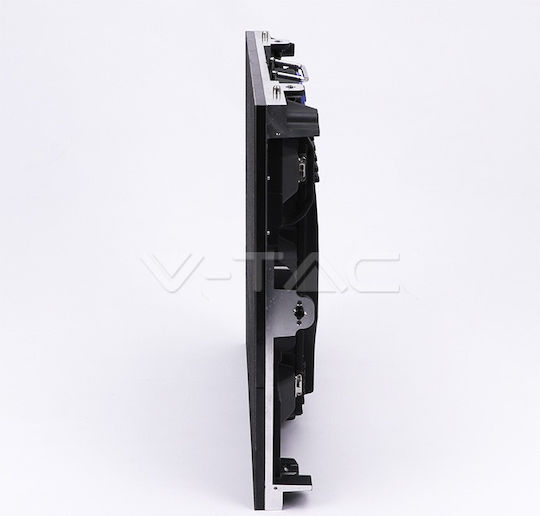

V-TAC P3 LED Display

Indoor display with dimensions 576 x 576 mm.

• Pixel: 3 mm
• Physical density: 111111/M2
• Pixel configuration: 1,1,1 (R,G,B)
• Driving method: 1/16 Constant current
• Resolution: 4096 (64x64) dots
• Unit weight: 0.35 kg
• Unit port: HUB75-B
• Operating voltage: 5V/DC
• Viewing angle: 120 Degrees
• Selection distance: 3-45m
• Driver device: 5020
• Per square meter of unit: 27.13 pcs
• Maximum power: 1000W/M2
• Frame frequency: 60Hz
• Refresh frequency: 400-800 HZ/S
• Brightness: ≥1100 CD/M2
• Operating humidity: 10%~70% RH
• Operating voltage display: AC46~4HZ, 220V±15%/110V±15%
• Gray scale/color: ≥16.7M colors
• Input signal: RF, S-Video, RGB, etc.
• Control system: PCTV nonlinear card, DVI screen card, LINSN control system
• Mean time between failures: > 5000 hours
• Steel box weight: 40 kg/M2
• Steel box size: L576 x H768 x 80 mm
• LED chip: SMD2121
• Lifetime: 100,000 hours
• Power capacity: 400W
• Voltage: AC: 220V
• Frequency: 50/60Hz
• Color temperature: 8500K-11500K
• Body color: Black
• Startup time: 100% ON 0.001 sec (instant activation)
• Color stability: 15000
• Operating conditions: Suitable for temperatures -10° +40°
• IP rating: IP40
• Dimensions: H192 x W192 x D13 mm
• Order code: 11109
• Items per package: 1
• EAN code: 3800157644686
• Certification: CE, EMC, ROHS
• Brand: V-TAC
