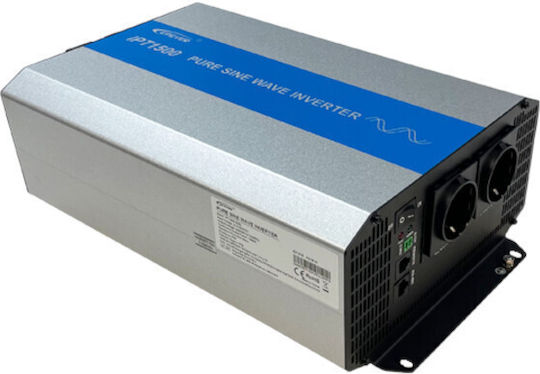

The Epsolar IPT1500-24 is a pure sine wave inverter that converts DC voltage to AC. It provides 1500 W of continuous power and 3000 W of peak power for 5 s. Maximum conversion efficiency exceeds 93.5% at 40% load, while energy-saving mode reduces power consumption.

Its digital design uses a dual closed-loop current and voltage control algorithm for fast response and low total harmonic distortion (THD). It can be used in off-grid systems, such as vehicle, security monitoring, emergency lighting, home power and field power supply systems. It supports connection to an MT91 LCD display, computer or mobile phone.

• Output type: Pure sine wave
• Nominal input voltage: 220 V
• DC input voltage: 24 V, range 21.6–32.0 V
• AC output voltage: 220 V with ±3% deviation or 230 V with −7% to +3% deviation
• Output frequency: 50/60 Hz with ±0.2% deviation
• Rated power: 1500 W
• Continuous power: 1500 W at 35 °C and nominal input voltage
• Peak power: 3000 W for 5 s
• Maximum conversion efficiency: Over 93.5% at 40% load
• Energy-saving mode: Yes
• Connectivity: MT91 LCD display, computer or mobile phone
