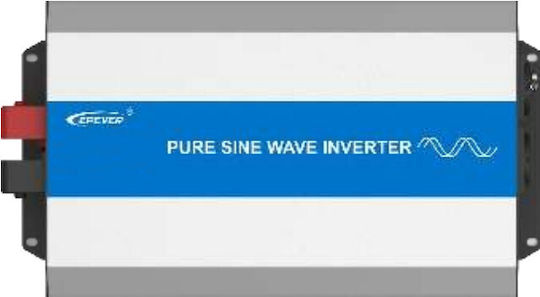

DC-AC Inverter 2000W/24V sine wave output with an instantaneous starting load of 4000W@5S. The efficiency rating is > 90.0%. It features a connection to the MT91 LCD screen and a computer or mobile phone for monitoring. It includes an energy-saving mode.

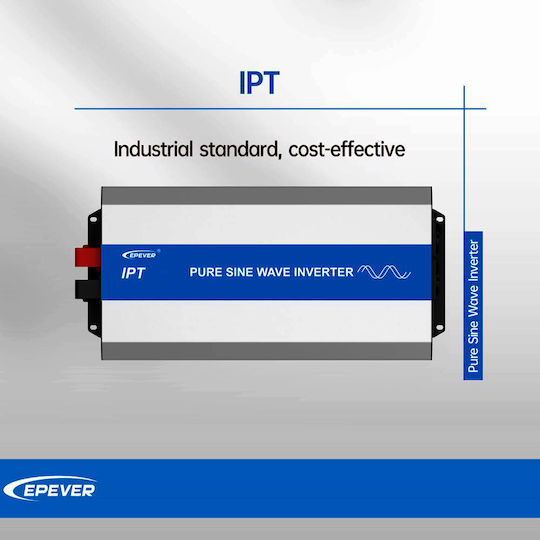

The IPT series is a high-frequency sine wave DC/AC inverter, constructed with a fully digital smart design and a dual closed-loop voltage current control algorithm. It provides fast response, high conversion efficiency, and low total harmonic distortion (THD).

It can be widely used in:

• Off-grid DC-AC systems such as vehicle systems
• Security monitoring systems
• Emergency lighting systems
• Home electricity systems
• Field power supply systems

Technical Specifications:

• Continuous power: 2000W@35°C@Rated input voltage
• Instantaneous power: 4000W@5S
• Input voltage: 24VDC 21.6 ~ 32.0VDC
• Output voltage: 220VAC (±3%); 230VAC (-7%~+3%), 50/60Hz ± 0.2%, Pure Sine Wave
• Maximum output efficiency: > 93.0% (30% loads)
• Harmonic distortion: THD
