Explosive Gas Meter - AZI-VZ7291

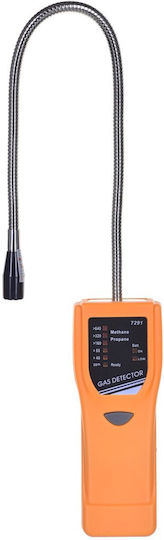

The VZ 7291 model is a highly sensitive device intended for checking gas installation leaks and detecting damage in gas installations and appliances. It features an audible signal and a six-level visual scale, while the 450 mm flexible probe allows access to hard-to-reach places.

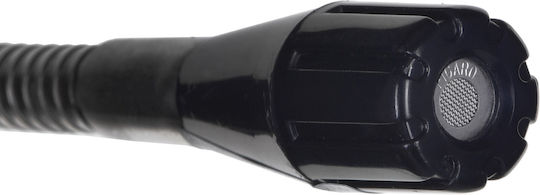

• Accurate semiconductor sensor from Figaro

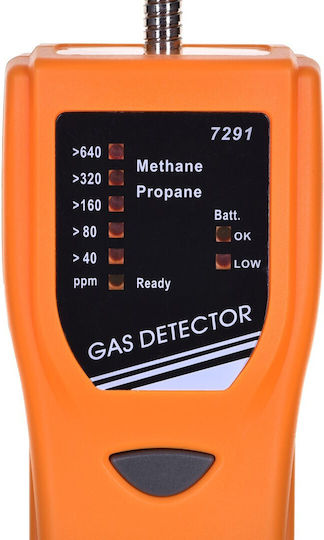

• Six-stage LED indicator
• High sensitivity threshold (40 ppm for methane)
• Flexible probe, 450 mm long
• Automatic zeroing and self-check upon activation
• Power-off function after 10 minutes

Technical details:

• Type of sensor: semiconductor from Figaro
• Methane measurement range: 40 - 640 PPM
• Propane measurement range: 35 - 580 PPM
• Measurement units: PPM
• Preparation time for work: < 60 sec
• Gas exposure time: < 10 sec

Working conditions:

• Temperature range: -5 ~ +45 °C
• Humidity range: 5 - 99 RH (non-condensing)

Storage conditions:

• Temperature range: -10 ~ +50 °C (without battery)
• Humidity range: 5 - 99 RH (non-condensing)

Mechanical parameters:

• 6 LED indicators
• Leak detection signal: LED and audible
• Meter dimensions: 175 x 70 x 38 mm (L x W x H)
• Weight: 340g (with batteries)

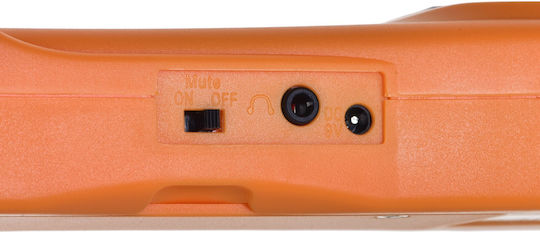

• Jack type socket for headphone connection

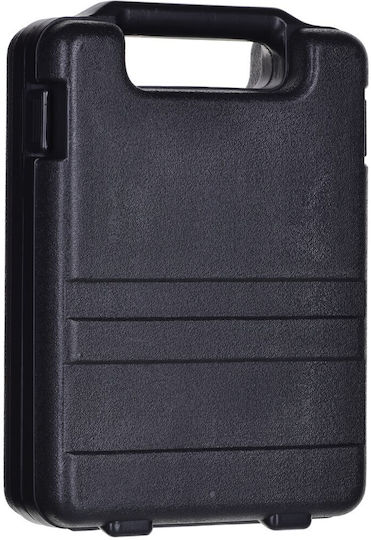

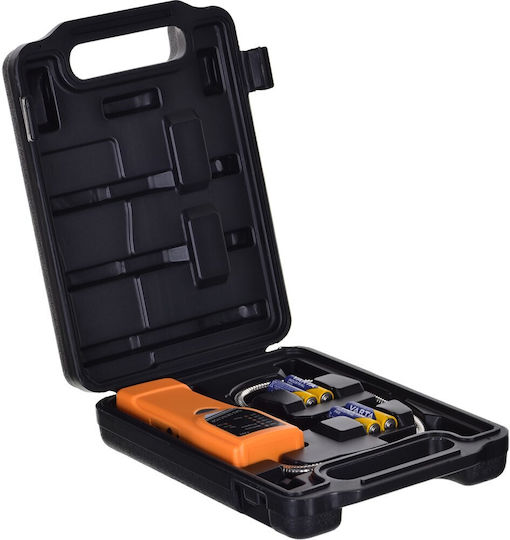

Equipment: 4 batteries, plastic case, manual in Polish

CE mark
