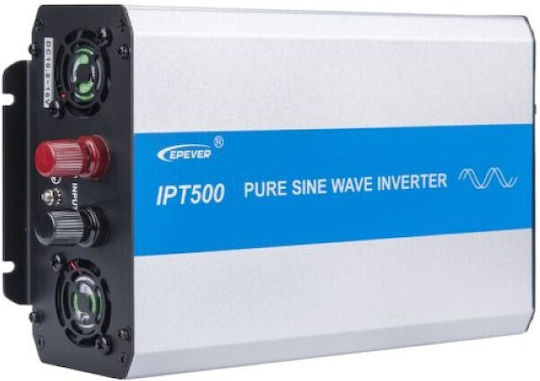

DC-AC inverter 500W/12V pure sine output.

• Instantaneous starting load 1000W@5S.
• Efficiency rate > 89.5%.
• Connection with MT91 LCD screen and computer or mobile phone.
• Energy saving mode.

The IPT series is a high-frequency DC/AC pure sine inverter, built with a fully digital smart design and a dual closed-loop current voltage control algorithm.

Advantages:

• Fast response.
• High conversion efficiency.
• Low total harmonic distortion (THD).
• High reliability in operation.

The series can be widely used in off-grid DC-AC systems, such as:

• Vehicle systems.
• Security monitoring systems.
• Emergency lighting systems.
• Home electrical power systems.
• Field power supply systems.
• Other systems requiring higher power quality.

Warning: The AC neutral should not be grounded.

Technical Specifications:

• Continuous power: 500W@35°C@Rated input voltage.
• Peak power: 1000W@5S.
• Input voltage: 12VDC 8 ~ 16.0VDC.
• Output voltage: 220VAC (±3%); 230VAC (-7%~+3%), 50/60Hz ± 0.2%, Pure Sine Wave.
• Maximum output efficiency: > 91.0% (40% loads).
• Harmonic distortion: THD.
