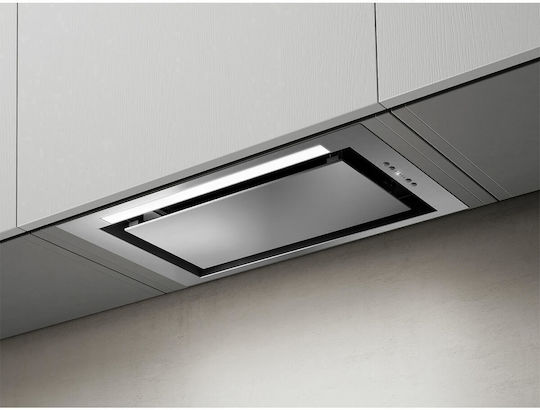

Elica Hidden 2.0 IX/A/72 Ventilation Mechanism 72cm Inox
Vent Hoods

Elica Hidden 2.0 IX/A/72 Ventilation Mechanism 72cm Inox Code: PRF0188201

The Hidden hood by Elica is the perfect solution for a fully integrated hood. It combines high absorption and a design that does not disrupt the uniformity of the kitchen.

Total Integration

Thanks to...

The Hidden hood by Elica is the perfect solution for a fully integrated hood. It combines high absorption and a design that does not disrupt the uniformity of the kitchen.

Total Integration

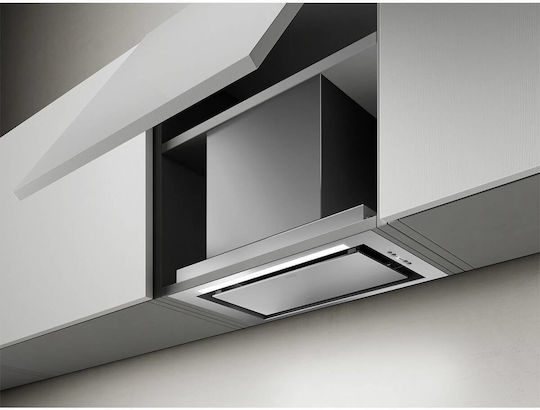

Thanks to its simple design and its ability to hide under the cabinets, the Hidden 2.0 offers absolute uniformity in the kitchen. It operates with perimeter absorption...

See full description See full description

  • Item

    Absorption Mechanism

    "They are built-in hoods that are installed in cabinets and only the bottom surface of the hood is visible, additionally they do not have sliding filters."

  • Noise Level

    Shows how much noise the extractor makes when it is in operation.

    2. The fewer the db, the quieter it is. An extractor with 58db or less is considered quite quiet.

  • Energy class

    The energy class categorizes devices into groups according to the current they consume, ranging from the lowest D to the highest A+++.

    2. The higher the energy class, the lower the electricity consumption.

    3. For example, for a 12 sq.m. kitchen with an extractor fan that has an absorption power of about 340m³/h and frequent weekly use, the difference in annual cost from D to A is about €6, and from A to A+++ the difference is almost negligible.

  • Extraction Power (Max)

    Displays the maximum absorption capacity. To calculate the required absorbency, knowledge of the dimensions of the kitchen space is necessary.


    For example, for a 7 sqm kitchen, the required absorption power is approximately 200m³/h, for 12 sqm it is approximately 340m³/h, and for 15 sqm it is 420m³/h and above.

  • Filter Type

    Metal

    They are used in most extractors. Metallic filters are easy to remove and clean, either in the dishwasher or by hand. They do not require frequent replacement.
  • See all
The product is not available for shipping to the selected country.
Review the product
Product report

Description

Description

The Hidden hood by Elica is the perfect solution for a fully integrated hood. It combines high absorption and a design that does not disrupt the uniformity of the kitchen.

Total Integration

Thanks to its simple design and its ability to hide under the cabinets, the Hidden 2.0 offers absolute uniformity in the kitchen. It operates with perimeter absorption and the bottom part is a stainless steel panel.

High Performance

Extremely high absorption. Ideal model for large kitchens or cooking practices that include intensive boiling, frying, or grilling. Even internally in the cabinet, the hood's aesthetics are high as it resembles an external hood and not a fully integrated one.

Strip LED Lighting System

The product is equipped with Strip LED lighting systems. The LEDs (1x7W 3500K) provide the best possible lighting of the stove to facilitate cooking. Additionally, they last up to ten times longer than conventional bulbs and save 90% electrical energy.

Technical Specifications

  • Width: 72 cm

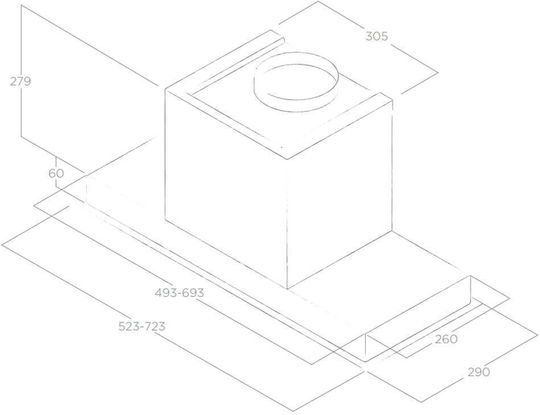

  • Built-in dimensions (HxWxD): 33.9x72.3x29 cm
  • Version: Duct out
  • Color: Stainless steel, stainless steel + white glass
  • Lighting: Strip Led 1x7 W 3500K
  • Control: 3S+B Electronic push button
  • Noise Level: 51-67 dB
  • Power: 277 W
  • Outlet diameter: Ø 15 cm
  • Maximum absorption: 690 m³/h

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
PRF0188201

Product Details

Type
Absorption Mechanism

Type

Absorption Mechanism
"They are built-in hoods that are installed in cabinets and only the bottom surface of the hood is visible, additionally they do not have sliding filters."
Retro
No
Grease Filter Material
Metal

Grease Filter Material

Metal

They are used in most extractors. Metallic filters are easy to remove and clean, either in the dishwasher or by hand. They do not require frequent replacement.
Extraction Mode
Extraction

Extraction Mode

Concerns the way in which the extractor absorbs air.

Extraction

The air that the extractor pulls is expelled from the house through a pipe, cleaning the atmosphere in the kitchen.
Dual Motor
No
Type of Control
Switches
Timer Function
No
Filter Cleaning Indicator
No
Washable Filter
-
Colour
Inox

Technical Features

Extraction Power (Max)
690 m³/h

Extraction Power (Max)

Displays the maximum absorption capacity. To calculate the required absorbency, knowledge of the dimensions of the kitchen space is necessary.


For example, for a 7 sqm kitchen, the required absorption power is approximately 200m³/h, for 12 sqm it is approximately 340m³/h, and for 15 sqm it is 420m³/h and above.

Dimensions

Width
72 cm
Length
28.2 cm

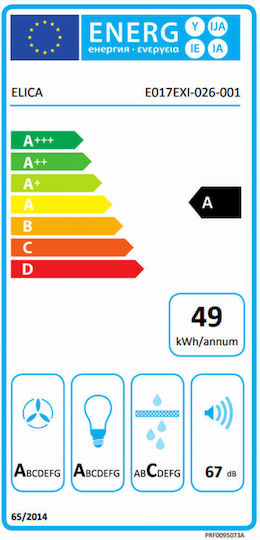

Energy Label

Energy Class
A

Energy Class

The energy class categorizes devices into groups according to the current they consume, ranging from the lowest D to the highest A+++.

2. The higher the energy class, the lower the electricity consumption.

3. For example, for a 12 sq.m. kitchen with an extractor fan that has an absorption power of about 340m³/h and frequent weekly use, the difference in annual cost from D to A is about €6, and from A to A+++ the difference is almost negligible.
Average Energy Consumption per Year
49 kWh/y
Extraction Flow Efficiency
A

Extraction Flow Efficiency

Expresses how effective the extractor is in absorbing odors. 2. The performance scale starts at G for less efficient extractors and goes up to A for more efficient ones. 3. Typically, a rating of D and above is a good performance for effectively absorbing odors from cooking.
Lighting Efficiency
A

Lighting Efficiency

Expresses the intensity of the hood's lighting. The scale starts from G for the lowest performance where the lighting is quite soft, up to A for the highest performance where the lighting is more intense. It is usually recommended to have a lighting performance index of C or higher to facilitate cooking with more intense lighting.
Fat Retention Efficiency
C

Fat Retention Efficiency

Shows how effectively the filters of the extractor work in retaining fat.


The scale starts from G for the lowest performance, up to A for the highest performance.


A performance rating of C and above is considered satisfactory for fat retention during cooking.
Noise Level
67 dB

Noise Level

Shows how much noise the extractor makes when it is in operation.

2. The fewer the db, the quieter it is. An extractor with 58db or less is considered quite quiet.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
