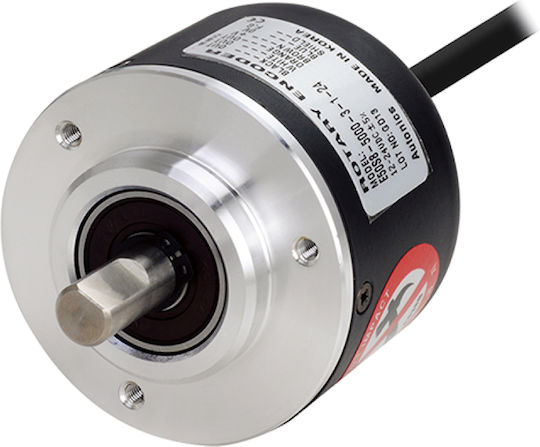

Autonics E50S8-3600-3-V-24 Rotary Enconter Φ50 3600Rpm 3 V 24 Voltage 03.058.0024
Electrical Supplies

Autonics E50S8-3600-3-V-24 Rotary Enconter Φ50 3600Rpm 3 V 24 Voltage 03.058.0024

The Autonics E50S8-3600-3-V-24 rotary encoder records rotation via an 8 mm diameter shaft and provides a resolution of 3600 P/R. It has a maximum response frequency of 300 kHz and a maximum...

The Autonics E50S8-3600-3-V-24 rotary encoder records rotation via an 8 mm diameter shaft and provides a resolution of 3600 P/R. It has a maximum response frequency of 300 kHz and a maximum permissible rotational speed of 5000 rpm.

  • Shaft diameter: 8 mm
  • Resolution: 3600 P/R
  • Maximum response frequency: 300 kHz
  • Maximum permissible rotational speed: 5000 rpm
  • ...
See Description & Specifications See Description & Specifications
112 50 €
Delivery by Thu, 12 Nov
14,00 €   shipping cost
Sent from Greece
From Galazoula 5.0 (5)
5.0 (5 reviews)
Greece
1 piece
See Electrical Equipment on the page of Galazoula

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description & Specifications

The Autonics E50S8-3600-3-V-24 rotary encoder records rotation via an 8 mm diameter shaft and provides a resolution of 3600 P/R. It has a maximum response frequency of 300 kHz and a maximum permissible rotational speed of 5000 rpm.

  • Shaft diameter: 8 mm
  • Resolution: 3600 P/R
  • Maximum response frequency: 300 kHz
  • Maximum permissible rotational speed: 5000 rpm
  • Starting torque: up to 70 gf·cm (0.00686 N·m)
  • Control output: Voltage
  • Power supply: 12–24 VDC ±5%
  • P-P ripple: up to 5%
  • Connection type: Axial cable type
  • Protection rating: IP50 (IEC)
