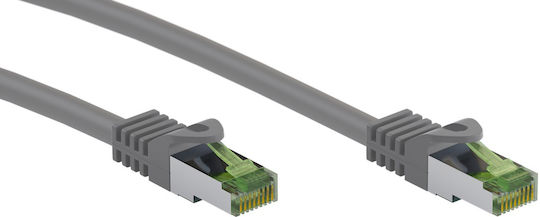

The Goobay 61120 S/FTP PiMF shielded network cable is Cat.8.1 rated and supports bandwidths of up to 2,000 MHz. It supports PoE, PoE+, UPoE, 4PPoE and HDBaseT, as well as the 25GBase-T and 40GBase-T standards.
The two RJ45 male (8P8C) connectors feature 50 μm gold-plated contacts. The cable has stranded AWG 26/7 copper conductors, a flame-retardant, halogen-free LSZH sheath, kink protection and locking-tab protection at both ends. The contacts follow the EIA/TIA-568B wiring standard.
- Length: 10 m
- Type: S/FTP
- Category: Cat.8.1
- Bandwidth: up to 2,000 MHz
- Compatibility: PoE, PoE+, UPoE, 4PPoE, HDBaseT, 25GBase-T, 40GBase-T
- Connectors: 2 × RJ45 male (8P8C)
- Shielding: S/FTP PiMF with foil shielding around each pair and an overall aluminium braid
- Conductor material: Copper
- Conductor type: Stranded AWG 26/7
- Contacts: 50 μm gold-plated
- Contact arrangement: EIA/TIA-568B
- Cable sheath: LSZH, flame-retardant and halogen-free
- Sheath diameter: approx. 6.2 mm
- Kink protection: At both ends
- Locking-tab protection: At both ends
- Colour: Grey
- Packaging: No plastic packaging
- Product Number
- 61120
- Type
- S/FTP
- Category
- Cat.8.1
- Length
- 10 m
- Outdoor
- No
- Colour
- Grey
- Terminated
- Yes
- Flat
- No
- Fiber Optic Connectors
- -
